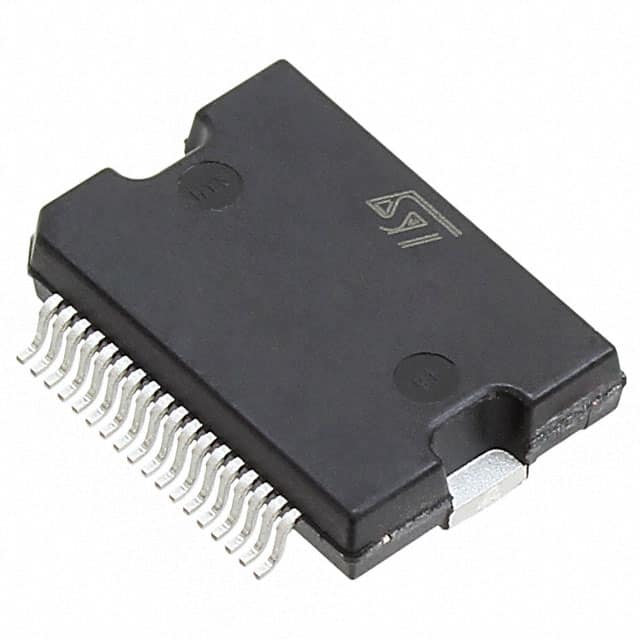

ISO8200BTR The STMicroelectronics ISO8200BTR is a power switch/driver IC with 8 high-side outputs. It offers a load voltage range of 10.5V to 36V and a maximum output current of 700mA.
Mfr Part #:

ISO8200BTR

Available from 3 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics ISO8200BTR is a power switch/driver IC with 8 high-side outputs. It offers a load voltage range of 10.5V to 36V and a maximum output current of 700mA.
✓ Total Stock: 8,724 pcs
$ Price Range: $0.32

ISO8200BTR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
6,600 pcs
On Request
6600 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,124 pcs
On Request
1124 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISO8200BTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Features
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

ISO8200BTR Description

Short technical summary and product information.

The STMicroelectronics ISO8200BTR is an integrated circuit designed for power distribution and load driving applications. This device features 8 high-side outputs, capable of handling a load voltage range from 10.5V to 36V, with a maximum output current of 700mA per channel. It includes essential features such as auto-restart, galvanic isolation, and status flags, along with fault protection mechanisms including fixed current limiting and over-temperature protection.



The ISO8200BTR operates within a temperature range of -40°C to 125°C (TJ). It is designed for surface mount installation and comes in a PowerSO-36 package, specifically a 36-BSSOP with an exposed pad. The Rds On (Typ) is rated at 120mOhm. This component is suitable for applications requiring robust power switching and protection.



This power switch/driver is categorized under PMIC - Power Distribution Switches, Load Drivers. It supports a 1:1 input to output ratio and is configured for high-side switching. The interface is parallel, and the switch type is suitable for relay and solenoid driving.

ISO8200BTR Quick Information

Product Type: Power Distribution Switch/Load Driver
Canonical Name: STMicroelectronics ISO8200BTR Power Switch/Driver
Subcategory: PMIC - Power Distribution Switches, Load Drivers

ISO8200BTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISO8200BTR Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISO8200BTR Features

  • Eight high-side power outputs.
  • 700mA maximum output current.
  • 10.5V to 36V load voltage range.
  • Includes auto-restart and galvanic isolation.
  • Surface mountable in PowerSO-36 package.

ISO8200BTR Applications

  • Ideal for power distribution.
  • Suitable for load driving tasks.
  • Used in systems needing isolation.
  • Supports solenoid and relay control.

ISO8200BTR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the ISO8200BTR?

-40°C to 125°C (TJ)

What type of package is the ISO8200BTR supplied in?

PowerSO-36, specifically a 36-BSSOP with an exposed pad.

What is the maximum output current for the ISO8200BTR?

700mA

What is the load voltage range for this power switch?

10.5V to 36V

Does the ISO8200BTR have fault protection features?

Yes, it includes current limiting (fixed) and over-temperature protection.

How many outputs does the ISO8200BTR have?

8
