| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,000 pcs
|
18000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |

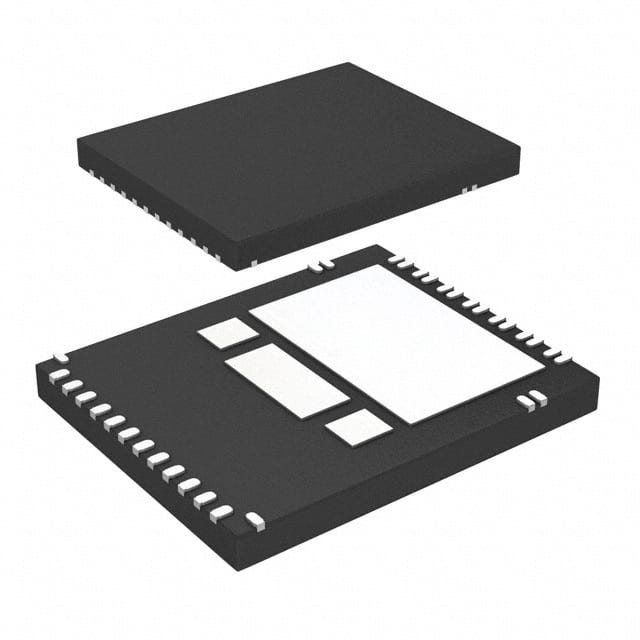

The ISO8200BQTR is a parallel-interface high-side driver designed for driving relays and solenoids. It integrates 8 outputs with a 1:1 ratio, each capable of delivering 700mA at 10.5V with a typical on-resistance of 120mOhm. The device includes comprehensive fault protection: fixed current limiting, over-temperature shutdown, over-voltage protection, and undervoltage lockout (UVLO). Additional features include automatic restart after a fault condition and a status flag output for system monitoring. The driver operates across a junction temperature range of -40°C to 125°C. It is housed in a 32-TQFN Exposed Pad package (also known as 32-TFQFPN 11x9) for surface-mount assembly, providing efficient thermal dissipation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 10.5V.
The device is available in a 32-TQFN Exposed Pad package (32-TFQFPN).
The operating junction temperature range is -40°C to 125°C.
It has 8 outputs.
Fixed current limiting, over-temperature, over-voltage, and undervoltage lockout (UVLO).
High-side output configuration.
Parallel interface.
