| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,340 pcs
|
1340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Common Mode Transient Immunity (Min) | |
| Data Rate | |
| Inputs | |
| Isolated Power | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Propagation Delay tpLH | |
| Pulse Width Distortion (Max) | |
| Rise | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Type | |
| Voltage | |
| Voltage Supply |

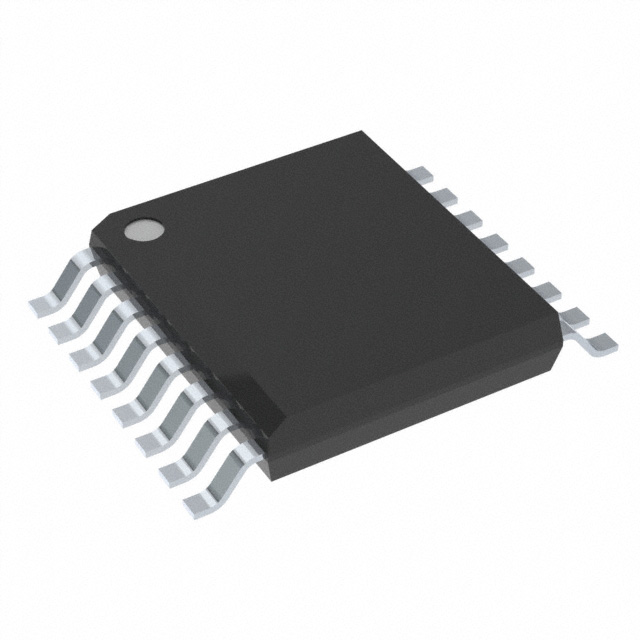

The Texas Instruments ISO7763DBQ is a general purpose digital isolator designed for robust signal isolation. It provides 3000Vrms of isolation, ensuring signal integrity in noisy environments.
Key electrical specifications include a 100Mbps data rate and a high Common Mode Transient Immunity (CMTI) of 85kV/µs. The isolator operates with a supply voltage range of 2.25V to 5.5V and features unidirectional channels. It has a propagation delay of 16ns and a pulse width distortion of 4.9ns.
This device is housed in a 16-SSOP package with a surface mount type. The operating temperature range is -55°C to 125°C, making it suitable for demanding applications. The ISO7763DBQ is RoHS3 compliant and has an MSL rating of 2.
With its combination of high isolation voltage, data rate, and environmental robustness, the ISO7763DBQ is well-suited for various industrial and communication applications requiring reliable signal separation.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ISO7763DBQ provides 3000Vrms isolation voltage.
The device has 6 channels.
It supports data rates up to 100Mbps.
It is packaged in a 16-SSOP surface-mount package.
It operates over a temperature range of -55°C to 125°C.
Yes, it is RoHS3 compliant.
