| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,953 pcs
|
7953 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,938 pcs
|
1938 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Channel Type | |
| Common Mode Transient Immunity (Min) | |
| Data Rate | |
| Industrial Grade | |
| Inputs | |
| Isolated Power | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Propagation Delay tpLH | |
| Pulse Width Distortion (Max) | |
| Rise | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Type | |
| Voltage | |
| Voltage Supply |

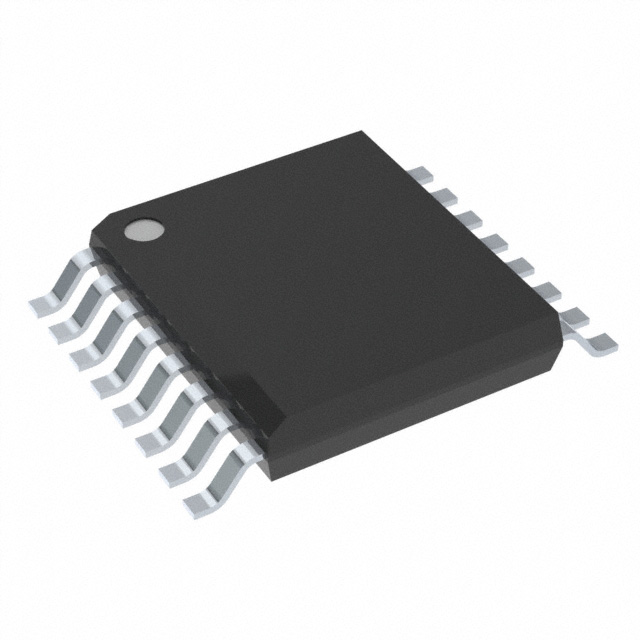

The Texas Instruments ISO7741QDBQQ1 is a general purpose digital isolator with a robust design suitable for various applications. It provides 2500Vrms of isolation, ensuring signal integrity and protection in noisy environments.
Key electrical specifications include a high data rate of 100Mbps and a minimum common mode transient immunity of 85kV/µs. The device operates within a supply voltage range of 2.25V to 5.5V and supports 4 unidirectional channels. Propagation delay is a maximum of 16ns, with a pulse width distortion of 4.9ns and typical rise/fall times of 2.4ns.
This digital isolator is housed in a 16-SSOP package, measuring 0.154 inches (3.90mm) in width, and is designed for surface mount installation. It operates across a wide temperature range of -40°C to 125°C, making it suitable for demanding conditions. The technology employed is capacitive coupling, and it does not provide isolated power.
Environmental compliance includes RoHS3 status, REACH unaffected status, and a Moisture Sensitivity Level (MSL) of 1 Unlimited. The part number ISO7741QDBQQ1 is part of the Automotive, AEC-Q100 series.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ISO7741QDBQQ1 provides 2500Vrms of isolation.
The maximum data rate for the ISO7741QDBQQ1 is 100Mbps.
The ISO7741QDBQQ1 has 4 channels.
The ISO7741QDBQQ1 operates from -40°C to 125°C.
The ISO7741QDBQQ1 is supplied in a 16-SSOP package.
The ISO7741QDBQQ1 is ROHS3 Compliant.
