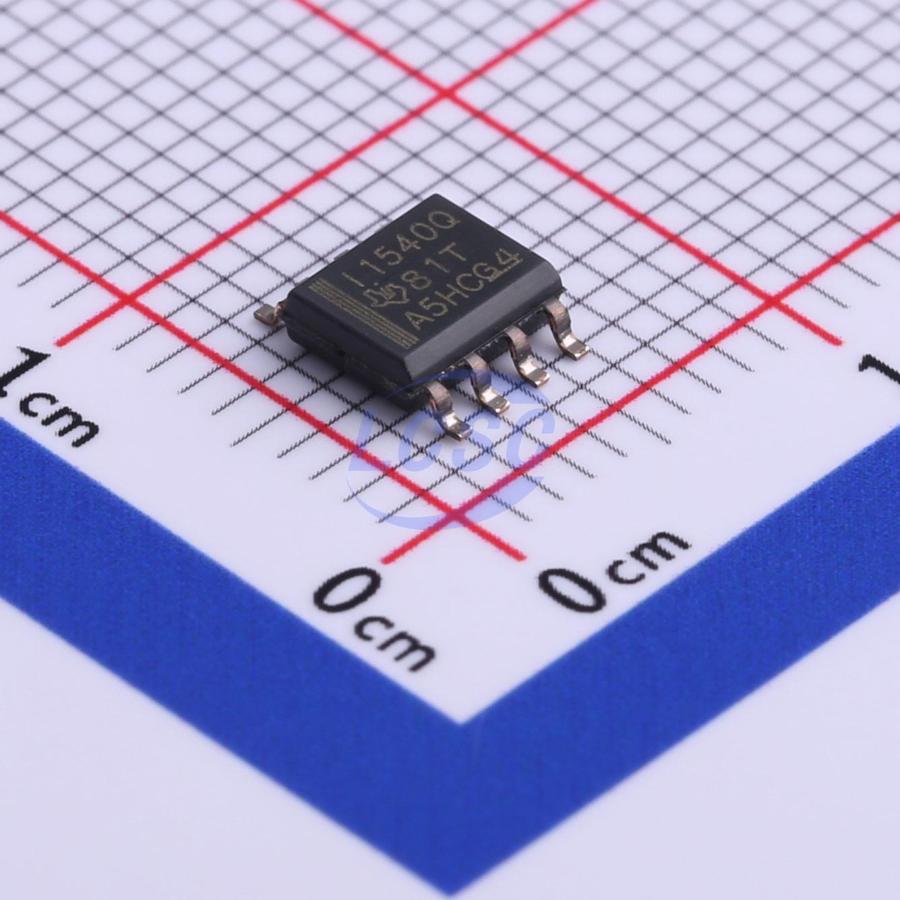

ISO1540QDQ1 The Texas Instruments ISO1540QDQ1 is a digital isolator designed for I2C communication. It offers 2500Vrms isolation and operates at data rates up to 1Mbps.
Mfr Part #:

ISO1540QDQ1

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments ISO1540QDQ1 is a digital isolator designed for I2C communication. It offers 2500Vrms isolation and operates at data rates up to 1Mbps.
✓ Total Stock: 5,217 pcs
$ Price Range: $6.71

ISO1540QDQ1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
217 pcs
On Request
217 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISO1540QDQ1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Common Mode Transient Immunity (Min)
Data Rate
Inputs
Isolated Power
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Pulse Width Distortion (Max)
Supplier Device Package
Technology
Type
Voltage
View Similar Products (0)

ISO1540QDQ1 Description

Short technical summary and product information.

The Texas Instruments ISO1540QDQ1 is a digital isolator featuring I2C interface support and 2500Vrms isolation. This component utilizes capacitive coupling technology for reliable signal isolation.



Key electrical specifications include a maximum data rate of 1Mbps and a high Common Mode Transient Immunity (CMTI) of 25kV/µs. It is designed for bidirectional communication across two channels. The operating temperature range is -40°C to 125°C, making it suitable for various environmental conditions.



Packaged in an 8-SOIC (0.154", 3.90mm Width) surface mount configuration, the ISO1540QDQ1 is designed for ease of integration into printed circuit boards. It is not an isolated power device, focusing solely on signal isolation.



This digital isolator is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended storage conditions. Its REACH status is unaffected.

ISO1540QDQ1 Quick Information

Product Type: Digital Isolator
Canonical Name: Texas Instruments ISO1540QDQ1 Digital Isolator
Subcategory: Digital Isolator

ISO1540QDQ1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISO1540QDQ1 Estimated Pricing

Qty Low High
1+ $6.71 $6.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISO1540QDQ1 Features

  • 2500Vrms isolation rating.
  • 1Mbps maximum data rate.
  • 2 bidirectional channels.
  • Capacitive coupling technology.
  • Surface mount 8-SOIC package.

ISO1540QDQ1 Applications

  • Ideal for I2C communication isolation.
  • Suitable for noisy environments.
  • Use in automotive applications.
  • Industrial control systems.

ISO1540QDQ1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the ISO1540QDQ1?

The ISO1540QDQ1 offers 2500Vrms of isolation.

What is the maximum data rate for the ISO1540QDQ1?

The maximum data rate supported by the ISO1540QDQ1 is 1Mbps.

What is the operating temperature range for this digital isolator?

The ISO1540QDQ1 operates between -40°C and 125°C.

What package type is the ISO1540QDQ1 available in?

The ISO1540QDQ1 is available in an 8-SOIC package.

How is the ISO1540QDQ1 mounted?

The ISO1540QDQ1 is a surface mount device.
