| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,006 pcs
|
2006 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
950 pcs
|
950 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Quiescent Current | |
| Supply Voltage |

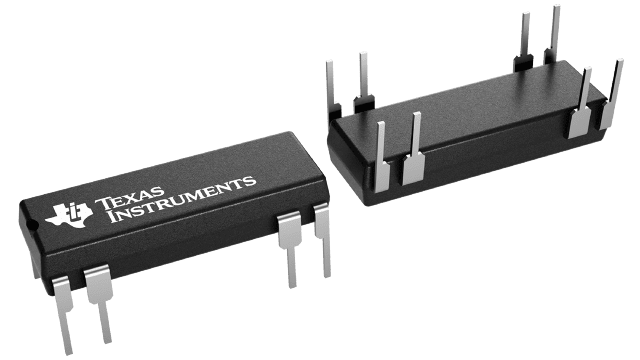

The Texas Instruments ISO122JP is a precision isolated amplifier designed for voltage sensing applications. It utilizes a novel duty cycle modulation-demodulation technique for reliable signal transmission across a capacitive barrier.
Key electrical specifications include a peak-to-peak input voltage range of 10 V, a working isolation voltage of 1500 Vrms, and a maximum nonlinearity of 0.020%. The device operates over a wide supply range of ±4.5 V to ±18 V and features a signal bandwidth of 50 kHz. The input offset voltage is a maximum of ±0.05 V, with a drift of ±200 µV/°C typical.
Available in PDIP-8 and SOIC-28 packages, the ISO122JP is suitable for through-hole and surface-mount applications. Its operating temperature range is -25°C to 85°C, making it versatile for various environmental conditions. The amplifier is designed for ease of use, requiring no external components for operation.
-25°C to 85°C.
1500 Vrms working isolation voltage.
50 kHz.
±0.05 V.
PDIP-8 and SOIC-28.
±4.5 V to ±18 V.
