| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

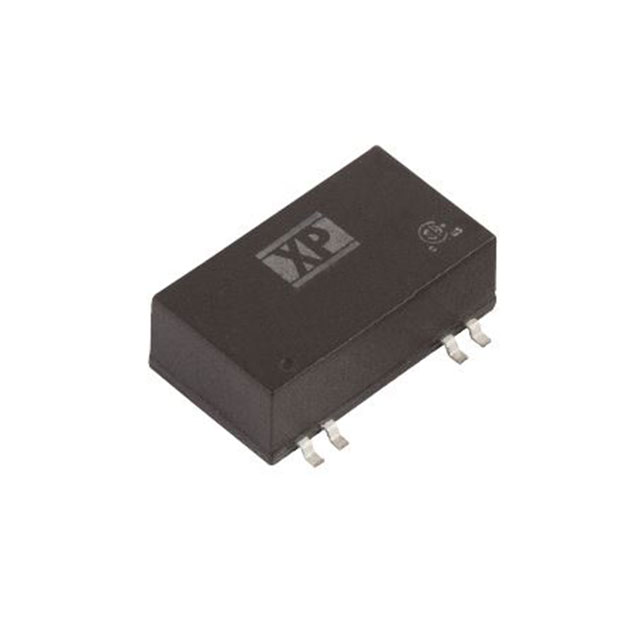

The XP Power ISM0212D12 is an isolated DC-DC converter module designed for commercial and medical applications. It provides dual regulated ±12V outputs with a total output power of 2W. Each output can deliver up to 83mA.
The converter operates with an efficiency of 74% and features short circuit protection. It is designed for surface mount assembly in a 16-SMD package with 6 leads, measuring 24.0mm x 13.7mm x 9.3mm.
Suitable for information technology equipment (ITE) and medical applications, the ISM0212D12 can operate over a temperature range of -25°C to 105°C with derating. The isolated module architecture ensures galvanic isolation between input and output.
This component is supplied in a surface-mount module package, making it suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.19 | $27.19 |
| 5+ | $26.37 | $26.37 |
| 10+ | $25.56 | $25.56 |
| 30+ | $25.11 | $25.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to 105°C with derating.
It comes in a 16-SMD Module, 6 Leads, surface mount package.
RoHS3 Compliant (unverified).
Dual ±12V outputs, each rated at 83mA.
Yes, it features short circuit protection (SCP).
It is suitable for ITE (Commercial) and Medical applications.
The efficiency is 74%.
