| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

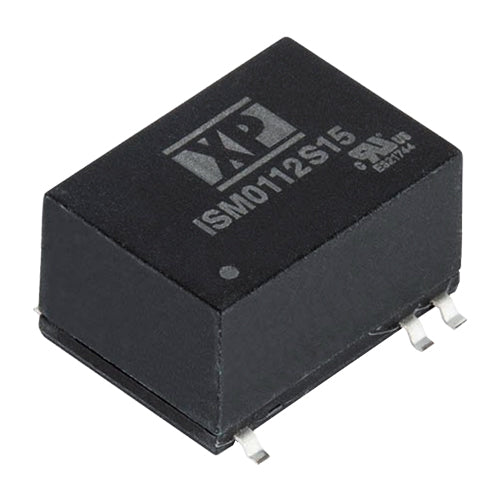

The XP Power ISM0112S15 is an isolated DC-DC converter module that provides a regulated 15V output from a minimum 10.8V input. It delivers 1W of output power with 68mA output current and features 80% typical efficiency. The module includes short circuit protection (SCP) and is designed for medical applications.
Housed in a 14-SMD module with 6 leads, it measures 18.9mm x 13.7mm x 10.5mm and is surface mountable. It operates over a temperature range of -40°C to 95°C with derating.
The ISM0112S15 is RoHS3 compliant, has MSL 1 (unlimited) moisture sensitivity, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.84 | $19.84 |
| 5+ | $19.24 | $19.24 |
| 10+ | $18.65 | $18.65 |
| 30+ | $17.86 | $17.86 |
| 100+ | $17.00 | $17.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 15V, and the minimum input voltage is 10.8V.
14-SMD Module with 6 leads.
-40°C to 95°C with derating.
Yes, it is RoHS3 compliant.
80% typical.
68mA.
Short circuit protection (SCP).
