| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

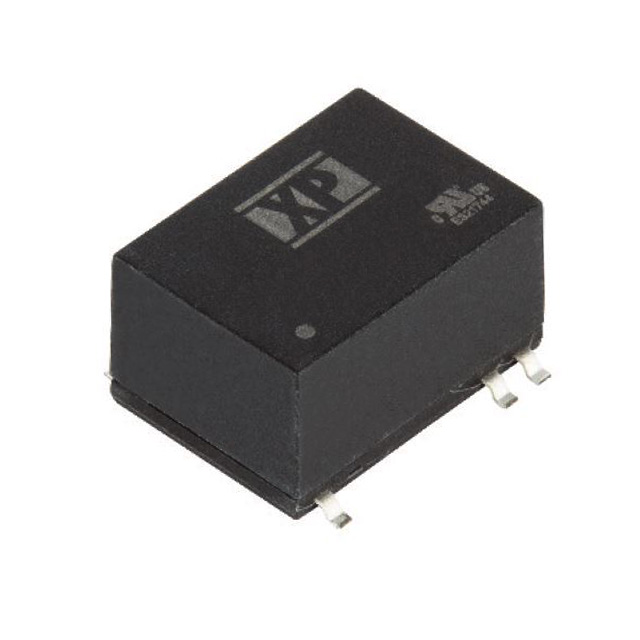

The ISM0105D12 is an isolated DC DC converter from XP Power, designed for medical applications. It delivers dual regulated outputs: +12V and -12V, each capable of 42mA, for a total output power of 1W. The converter achieves 80% efficiency and includes short circuit protection (SCP).
This surface-mount module is housed in a compact 14-SMD package with 6 leads, measuring 18.9mm x 13.7mm x 10.5mm. It operates over a temperature range of -40°C to 95°C with derating. The isolated module design provides galvanic isolation suitable for sensitive medical equipment.
The ISM0105D12 is part of XP Power's ISM series of DC DC converters. It is RoHS3 compliant (unverified) and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $20.59 | $20.59 |
| 5+ | $19.97 | $19.97 |
| 10+ | $19.35 | $19.35 |
| 30+ | $18.53 | $18.53 |
| 100+ | $17.65 | $17.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The converter provides dual outputs: +12V and -12V.
It comes in a 14-SMD Module with 6 leads.
-40°C to 95°C with derating.
It is listed as RoHS3 Compliant, but this is unverified.
80%.
1W.
Medical applications.
