| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,932 pcs
|
8932 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Reverse Voltage (VR) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

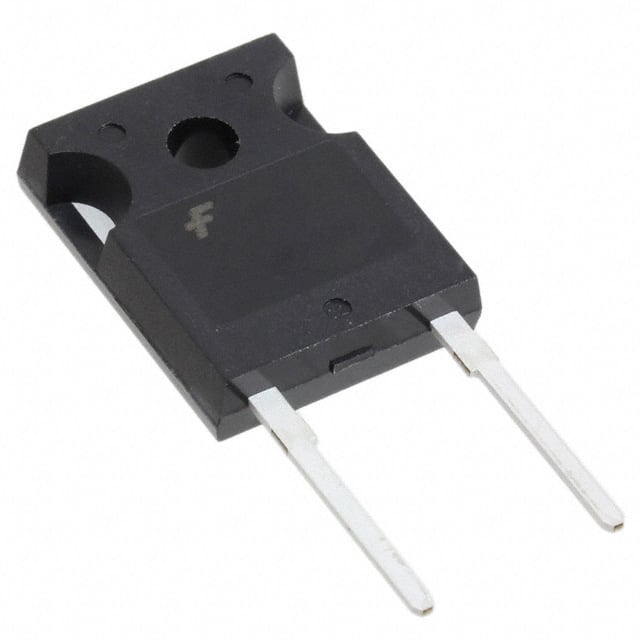

The ISL9R3060G2-F085 is a general purpose fast recovery rectifier diode designed for high efficiency power conversion. It is rated for a maximum reverse voltage of 600V and an average rectified current of 30A. The diode offers a fast reverse recovery time of 45ns, making it suitable for switching applications where low switching losses are critical. The device is housed in a through-hole TO-247-2 package, which provides excellent thermal performance and ease of mounting. It operates over a wide temperature range from -55°C to 175°C. This diode is RoHS3 compliant and has an MSL rating of 1 (unlimited). Typical applications include power supplies, inverters, and motor drives.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.03 | $5.03 |
| 10+ | $2.82 | $2.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 600V.
The average rectified current is 30A.
The maximum forward voltage is 2.4V at 30A.
The maximum reverse recovery time is 45ns.
It is available in a through-hole TO-247-2 package.
The operating temperature range is -55°C to 175°C.
It is listed as RoHS3 compliant, but this is unverified.
