ISL95522AHRZ The Renesas ISL95522AHRZ is a notebook battery charger IC designed for Lithium Ion/Polymer batteries. It features a 25V voltage rating and supports I2C/SMBus interfaces.
Mfr Part #:

ISL95522AHRZ

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas ISL95522AHRZ is a notebook battery charger IC designed for Lithium Ion/Polymer batteries. It features a 25V voltage rating and supports I2C/SMBus interfaces.
✓ Total Stock: 1,034 pcs
$ Price Range: $0.75

ISL95522AHRZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,034 pcs
On Request
1034 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL95522AHRZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Battery Chemistry
Current
Fault Protection
Halogen Free
Interface
Mounting Type
Number of Cells
Programmable Features
SVHC Present
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

ISL95522AHRZ Description

Short technical summary and product information.

The Renesas ISL95522AHRZ is a versatile battery charger integrated circuit designed for notebook applications. It supports Lithium Ion and Polymer battery chemistries, accommodating 2 to 4 cells.



This IC operates with a 25V voltage rating and offers programmable current control. Key electrical features include an I2C and SMBus interface for communication and fault protection against over current and over temperature conditions.

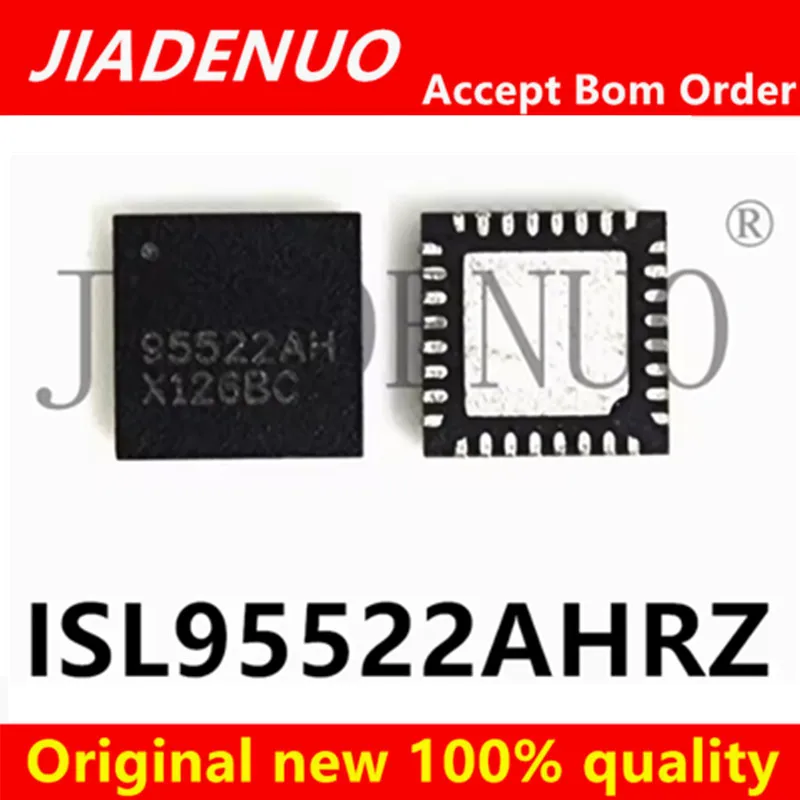

The ISL95522AHRZ is supplied in a 32-VFQFN Exposed Pad package, requiring Surface Mount installation. Its compact 4x4mm QFN form factor makes it suitable for space-constrained designs.

ISL95522AHRZ Quick Information

Product Type: Battery Charger
Canonical Name: ISL95522AHRZ Battery Charger
Subcategory: Power Management ICs

ISL95522AHRZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ISL95522AHRZ Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISL95522AHRZ Features

  • 25V voltage rating for battery charging.
  • Supports Lithium Ion/Polymer battery chemistries.
  • I2C and SMBus interface capabilities.
  • Over current and over temperature protection.
  • 32-VFQFN (4x4) surface mount package.

ISL95522AHRZ Applications

  • Notebook computer battery charging applications.
  • Portable electronic device power management.
  • Li-Ion battery pack charging circuits.
  • Multi-cell battery charging systems.

ISL95522AHRZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the ISL95522AHRZ?

The operating voltage is 25V.

What battery chemistries are supported?

Lithium Ion and Lithium Polymer.

How many cells can it charge?

It can charge 2 to 4 cells.

What interfaces does it support?

I²C and SMBus interfaces.

What fault protections are included?

Over current and over temperature protection.

What is the package type?

32-VFQFN Exposed Pad (4x4mm).

Is the charging current programmable?

Yes, constant current is programmable.
