ISL9205BIRZ The Renesas ISL9205BIRZ is a Battery Management IC designed for charging Lithium Ion/Polymer batteries. It supports a single cell configuration with a 4.2V output voltage.
Mfr Part #:

ISL9205BIRZ

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas ISL9205BIRZ is a Battery Management IC designed for charging Lithium Ion/Polymer batteries. It supports a single cell configuration with a 4.2V output voltage.
✓ Total Stock: 7,500 pcs
$ Price Range: $0.75

ISL9205BIRZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
7,500 pcs
On Request
7500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL9205BIRZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Battery Chemistry
Battery Pack Voltage
Charge Current
Current
Fault Protection
Height
Length
Mounting Style
Mounting Type
Number of Cells
Operating Temperature
Operating Voltage
Output Current
Output Voltage
Programmable Features
Supplier Device Package
Voltage
Width
View Similar Products (0)

ISL9205BIRZ Description

Short technical summary and product information.

The Renesas ISL9205BIRZ is a Battery Management Integrated Circuit (IC) designed for charging single-cell Lithium Ion and Lithium Polymer batteries. It operates within a supply voltage range of 4.25V to 6.5V and provides an output voltage of 4.2V.



Key electrical specifications include a programmable charge current of up to 900mA and features such as a timer for charge management. The device also incorporates over-temperature fault protection to ensure safe operation.

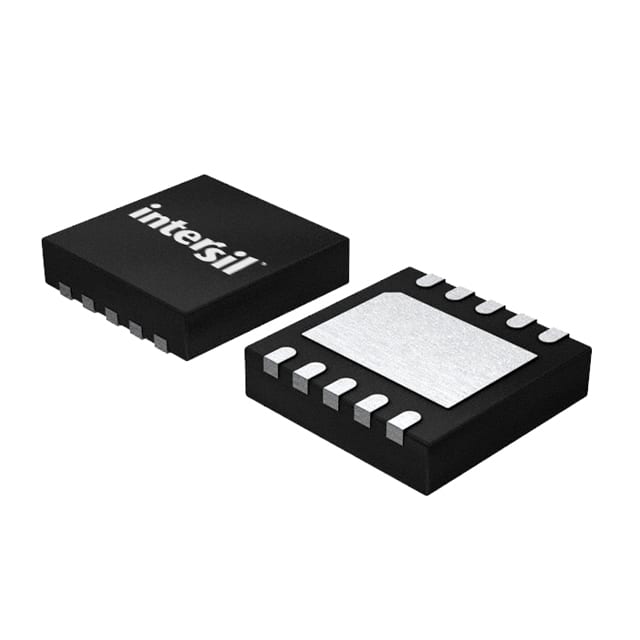

This IC is housed in a compact 10-DFN (3x3) exposed pad package, suitable for surface mount applications. The operating temperature range is from -40°C to +85°C, making it versatile for various environmental conditions. Its HTS code is 8542390001 and Taric code is 8542399000.



This component is part of the ISL9205B series and is categorized under Battery Chargers and Power Management ICs.

ISL9205BIRZ Quick Information

Product Type: Battery Charger IC
Series: ISL9205B
Canonical Name: Renesas ISL9205BIRZ Battery Management IC
Subcategory: Battery Management

ISL9205BIRZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISL9205BIRZ Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISL9205BIRZ Features

  • Single-cell Lithium Ion/Polymer battery charger.
  • 4.2V output voltage.
  • Programmable charge current up to 900mA.
  • Surface mount 10-DFN (3x3) package.
  • Operates from 4.25V to 6.5V supply.

ISL9205BIRZ Applications

  • Ideal for portable electronic devices.
  • Suitable for battery-powered systems.
  • Used in power management solutions.
  • Enables efficient battery charging.

ISL9205BIRZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating supply voltage range of the ISL9205BIRZ?

4.25 V to 6.5 V.

What package is the ISL9205BIRZ available in?

DFN-10 EP (Exposed Pad).

What is the operating temperature range of the ISL9205BIRZ?

-40°C to 85°C.

What is the output voltage of the ISL9205BIRZ?

4.2 V.

What is the maximum charge current?

900 mA.

What battery chemistry does the ISL9205BIRZ support?

Lithium Ion/Polymer.

What fault protection does it include?

Over-temperature protection.
