ISL9110AIITAZ-T The Renesas ISL9110AIITAZ-T is an adjustable Step-Up/Step-Down DC-DC switching regulator. It features a 1.2A output current and operates at 2.5MHz.
Mfr Part #:

ISL9110AIITAZ-T

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas ISL9110AIITAZ-T is an adjustable Step-Up/Step-Down DC-DC switching regulator. It features a 1.2A output current and operates at 2.5MHz.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.16

ISL9110AIITAZ-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL9110AIITAZ-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Supplier Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

ISL9110AIITAZ-T Description

Short technical summary and product information.

The Renesas ISL9110AIITAZ-T is a versatile DC-DC switching regulator designed for step-up and step-down applications. This component offers an adjustable output voltage and can deliver up to 1.2A of current. Its high switching frequency of 2.5MHz allows for efficient power conversion.

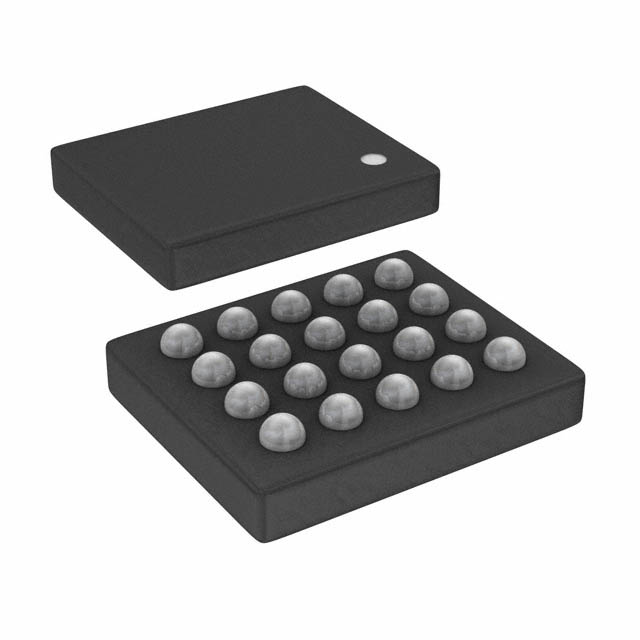

Packaged in a compact 20-WLCSP format, the ISL9110AIITAZ-T is suitable for surface mount applications. It operates within a temperature range of -40°C to 85°C (TA), making it robust for various environmental conditions. The device integrates a synchronous rectifier for improved efficiency.



This regulator is ideal for power management solutions where space and efficiency are critical. Its adjustable output and positive output configuration provide flexibility in design. The device is RoHS3 compliant, with MSL 1 classification.

ISL9110AIITAZ-T Quick Information

Product Type: DC-DC Switching Regulator
Series: ISL9110A
Canonical Name: Renesas ISL9110AIITAZ-T Step-Up/Step-Down DC-DC Switching Regulator
Subcategory: Voltage Regulators - DC DC Switching

ISL9110AIITAZ-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISL9110AIITAZ-T Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISL9110AIITAZ-T Features

  • Adjustable Step-Up/Step-Down regulator.
  • 1.2A maximum output current.
  • 2.5MHz switching frequency.
  • Surface mount 20-WLCSP package.
  • Operates -40°C to 85°C.

ISL9110AIITAZ-T Applications

  • Efficient power conversion.
  • Compact electronic designs.
  • Portable device power.
  • Battery powered systems.

ISL9110AIITAZ-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the ISL9110AIITAZ-T?

It is available in a 20-WLCSP (Wafer Level Chip Scale Package).

What is the operating temperature range?

The operating temperature range is -40°C to 85°C (TA).

What is the output voltage of the ISL9110AIITAZ-T?

The output voltage is adjustable and set to 1.8V.

What is the maximum output current?

The maximum output current is 1.2A.

What is the switching frequency?

The switching frequency is 2.5MHz.

Does the ISL9110AIITAZ-T feature synchronous rectification?

Yes, it features synchronous rectification.

What topology does the ISL9110AIITAZ-T use?

It uses a buck-boost topology.
