| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Input Voltage | |
| Lead Style | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Protection Features | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Dropout (Max) |

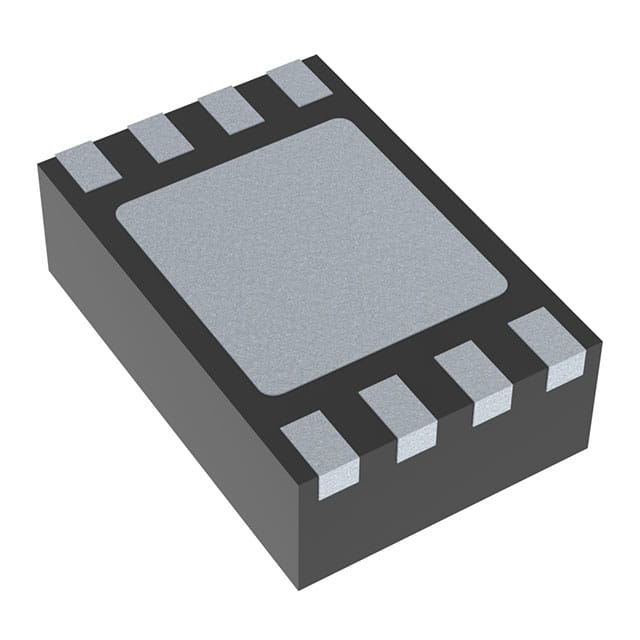

The ISL9005AIRNZ-T from Renesas Electronics Corporation is a linear voltage regulator designed for various electronic applications. It provides a fixed output voltage of 3.3V with a maximum output current of 300mA.
Key electrical specifications include an input voltage range up to 6.5V and a low quiescent current of 75µA. The regulator also features a maximum dropout voltage of 0.325V at 300mA, along with protection features such as over current, over temperature, soft start, and under voltage lockout (UVLO).
This component is housed in an 8-pin DFN (2x3) package, suitable for surface mounting. The operating temperature range is specified from -40°C to 85°C, making it adaptable for diverse environmental conditions. The device includes an Enable control feature for power management.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. These attributes make the ISL9005AIRNZ-T a reliable choice for power management in compact electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ISL9005AIRNZ-T provides a fixed output voltage of 3.3V.
The maximum output current is 300mA.
The operating temperature range is -40°C to 85°C.
It comes in an 8-DFN (2x3) surface-mount package with an exposed pad.
It includes over current, over temperature, soft start, and under voltage lockout (UVLO) protection.
Yes, it includes an enable control feature.
