ISL9003AIEHZ-T ISL9003AIEHZ-T is a fixed output 2.75V linear voltage regulator from Renesas. It supplies up to 150mA with a maximum dropout voltage of 0.4V at full load.
Mfr Part #:

ISL9003AIEHZ-T

Available from 1 distributors
Mfr Name: Renesas
Renesas
ISL9003AIEHZ-T is a fixed output 2.75V linear voltage regulator from Renesas. It supplies up to 150mA with a maximum dropout voltage of 0.4V at full load.
✓ Total Stock: 93,000 pcs
$ Price Range: $0.28

ISL9003AIEHZ-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
93,000 pcs
On Request
93000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL9003AIEHZ-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
Protection Features
Supplier Device Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

ISL9003AIEHZ-T Description

Short technical summary and product information.

The ISL9003AIEHZ-T is a linear voltage regulator from Renesas designed to provide a fixed 2.75V output. It is capable of delivering up to 150mA of output current. The device features a low dropout voltage of 0.4V maximum at 150mA load, making it suitable for battery-powered applications where efficiency is critical.



This regulator offers a quiescent current of only 40 µA, which helps extend battery life in portable devices. It includes a range of protection features such as over-current protection, over-temperature protection, soft start, and under-voltage lockout (UVLO). The enable control feature allows for power management.

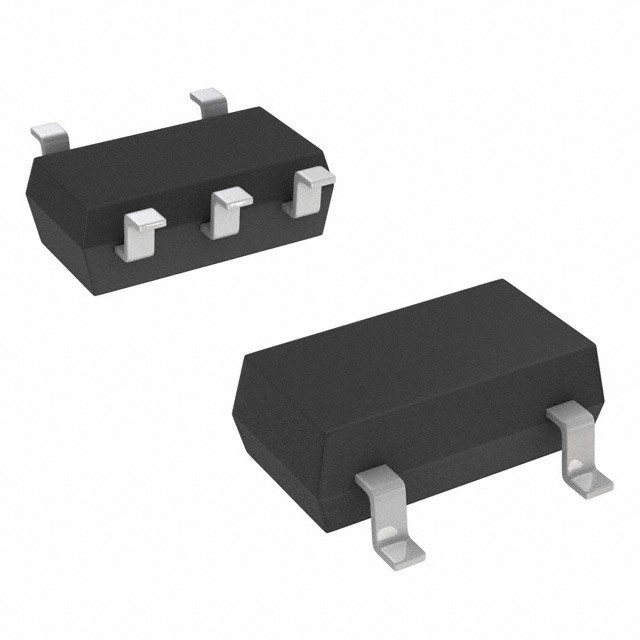

The ISL9003AIEHZ-T is housed in a compact SC-70-5 package (also compatible with 5-TSSOP and SOT-353), suitable for surface mount assembly. It operates over a temperature range of -40°C to 85°C, making it suitable for industrial and consumer applications. The output voltage is fixed and positive, simplifying the design.

ISL9003AIEHZ-T Quick Information

Product Type: Linear Voltage Regulator
Series: ISL9003A
Canonical Name: ISL9003AIEHZ-T
Subcategory: Positive Fixed Output

ISL9003AIEHZ-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ISL9003AIEHZ-T Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISL9003AIEHZ-T Features

  • Fixed 2.75V output voltage.
  • Maximum 150mA output current.
  • Low dropout voltage of 0.4V.
  • Quiescent current of 40 µA.
  • Built-in over-current and over-temperature protection.

ISL9003AIEHZ-T Applications

  • Ideal for battery-powered portable devices.
  • Used in low-power microcontroller systems.
  • Suitable for IoT sensor modules.
  • Applicable in industrial control circuits.

ISL9003AIEHZ-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the ISL9003AIEHZ-T?

The output voltage is fixed at 2.75V.

What is the maximum output current?

150mA.

What is the quiescent current?

40 µA.

What is the dropout voltage?

0.4V maximum at 150mA load.

What protection features does the regulator include?

Over current, over temperature, soft start, and under voltage lockout (UVLO).

What package is the ISL9003AIEHZ-T available in?

It is available in SC-70-5, which is also compatible with 5-TSSOP and SOT-353 packages.

What is the operating temperature range?

-40°C to 85°C.
