ISL88014IH5Z-TK

The Renesas ISL88014IH5Z-TK is a supervisor integrated circuit belonging to the Power Management PMIC category, specifically within the Supervisors subcategory. This device is designed for monitoring voltage levels and providing a reset signal to microprocessors or other digital systems. It features a single channel for voltage monitoring, with an adjustable or selectable voltage input. The reset function is active low and has a minimum timeout of 200ms. The output is configured as open drain or open collector.

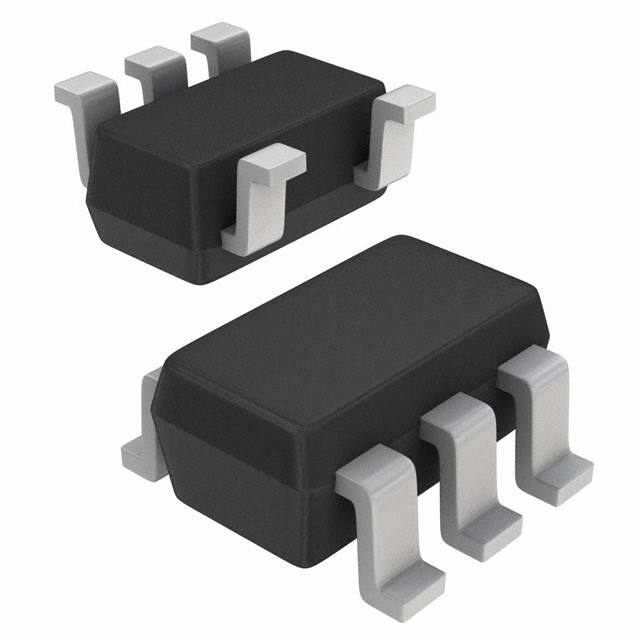

This supervisor IC operates over a temperature range of -40°C to 85°C (TA), ensuring stable performance in various environmental conditions. It is housed in a compact 5-SOT package, also referred to as SC-74A or SOT-753, making it suitable for space-constrained applications. The mounting type is surface mount, facilitating automated assembly processes. The ISL88014IH5Z-TK is RoHS3 compliant, indicating adherence to environmental regulations regarding hazardous substances.

Key specifications include its simple reset/power-on reset capability, monitoring a single voltage, and providing an active low reset signal. The adjustable voltage input allows for flexibility in design, while the open drain/collector output offers compatibility with various system architectures. Its surface mountable SOT23-5 package is common in many electronic designs.
