| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Data Rate | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Drivers | |
| Package / Case | |
| Pitch | |
| Propagation Delay | |
| SVHC Present | |
| Width |

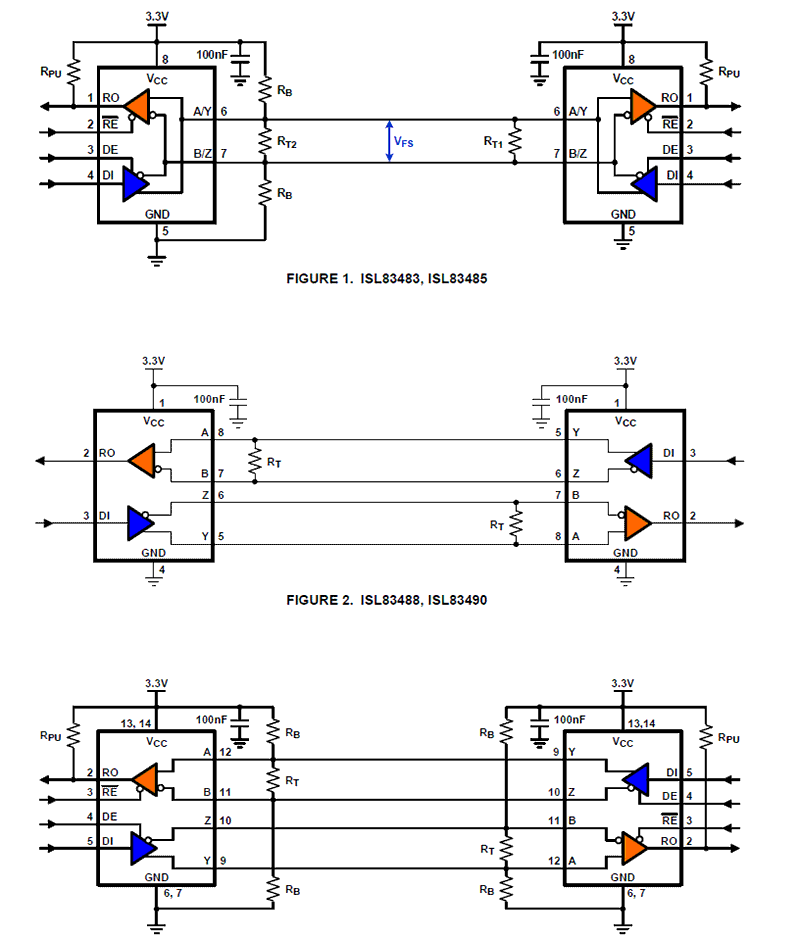

The Renesas ISL83491IBZ-T is a high-speed, low-power, single transceiver designed for RS-485 and RS-422 balanced communication. It operates from a single +3.3V supply with a 10% tolerance, making it interoperable with 5V logic families. This transceiver supports data rates up to 10Mbps and features a fail-safe receiver input design.
Key electrical characteristics include a wide common-mode input voltage range of -7V to +12V and a low shutdown current of 15nA. The device is protected against driver overload with current limiting and thermal shutdown circuitry. It is available in a 14-pin SOIC package suitable for surface mounting.
Applications for the ISL83491IBZ-T include factory automation, security networks, industrial process control, and level translation. Its robust design and compliance with industry standards make it a reliable choice for demanding communication systems.
The ISL83491IBZ-T operates from a single 3.3V supply, with a 10% tolerance range from 3V to 3.6V.
The ISL83491IBZ-T supports data rates up to 10Mbps.
The operating temperature range for the ISL83491IBZ-T is -40°C to +85°C.
The ISL83491IBZ-T is available in a 14-pin SOIC package.
The ISL83491IBZ-T is RoHS3 Compliant.
