ISL8200AMIRZ-T The ISL8200AMIRZ-T is a non-isolated point-of-load DC/DC converter module from Renesas, delivering up to 10A output current. It accepts a 3V to 20V input and provides an adjustable output from 0.6V to 6V.
Mfr Part #:

ISL8200AMIRZ-T

Available from 2 distributors
Mfr Name: Renesas
Renesas
The ISL8200AMIRZ-T is a non-isolated point-of-load DC/DC converter module from Renesas, delivering up to 10A output current. It accepts a 3V to 20V input and provides an adjustable output from 0.6V to 6V.
✓ Total Stock: 3,440 pcs
$ Price Range: $13.34

ISL8200AMIRZ-T Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,440 pcs
On Request
2440 pcs On Request 1 On Request On Request 24+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request 1925+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL8200AMIRZ-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Control Features
Current
Features
Height
Industrial Grade
Input Voltage
Length
Medical Grade
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Supplier Device Package
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

ISL8200AMIRZ-T Description

Short technical summary and product information.

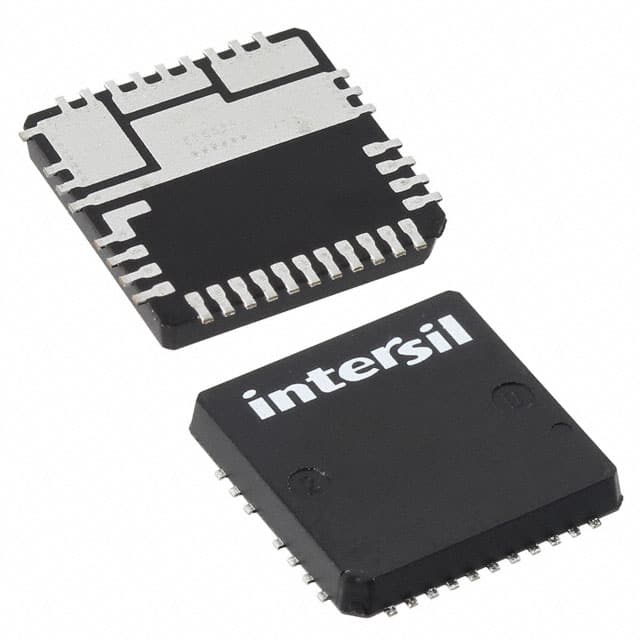

The ISL8200AMIRZ-T is a non-isolated point-of-load (PoL) DC/DC converter module from Renesas, part of the ISL8200AM series. It integrates a complete switch-mode power supply in a compact 23-PowerQFN package, simplifying design and reducing board space. The module supports a wide input voltage range of 3V to 20V and provides a single adjustable output from 0.6V to 6V, with a rated output current of 10A.



This module features adjustable output, load sharing, remote on/off, and remote sense capabilities. Its patented current-sharing architecture allows paralleling up to six modules to scale output current to 60A, with programmable phase shift for multiphase operation. The device includes output overvoltage, overcurrent, and over-temperature protection, along with undervoltage indication.



The ISL8200AMIRZ-T is designed for datacom, telecom, server, industrial, and medical applications, as well as general point-of-load regulation. It operates over a temperature range of -40°C to 85°C and is RoHS compliant. The surface-mount 23-QFN (15x15) package has a low profile of 2.2mm, suitable for space-constrained designs.

ISL8200AMIRZ-T Quick Information

Product Type: DC-DC Converter Module
Series: ISL8200AM
Canonical Name: Non-Isolated PoL DC/DC Converter Module
Subcategory: DC-DC Converters

ISL8200AMIRZ-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3
REACH Status: REACH Unaffected

ISL8200AMIRZ-T Estimated Pricing

Qty Low High
500+ $13.34 $13.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISL8200AMIRZ-T Features

  • Non-isolated point-of-load module.
  • 10A output current capability.
  • Adjustable output from 0.6V to 6V.
  • Input voltage range 3V to 20V.
  • Supports load sharing and remote sense.

ISL8200AMIRZ-T Applications

  • Ideal for server and datacom power.
  • Used in telecom equipment.
  • Suitable for FPGA power supplies.
  • Point-of-load regulation in industrial systems.

ISL8200AMIRZ-T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the ISL8200AMIRZ-T?

The output voltage is adjustable from 0.6V to 6V.

What is the maximum output current of the ISL8200AMIRZ-T?

The module provides up to 10A output current.

What is the input voltage range for the ISL8200AMIRZ-T?

The input voltage range is 3V to 20V.

What is the operating temperature range of the ISL8200AMIRZ-T?

The operating temperature range is -40°C to 85°C.

What package is the ISL8200AMIRZ-T available in?

The module is available in a 23-PowerQFN surface-mount package, measuring 15mm x 15mm with a height of 2.2mm.

Is the ISL8200AMIRZ-T RoHS compliant?

The datasheet states the module is RoHS compliant.
