| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Sync | |
| Control Features | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Phases | |
| Output Type | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |

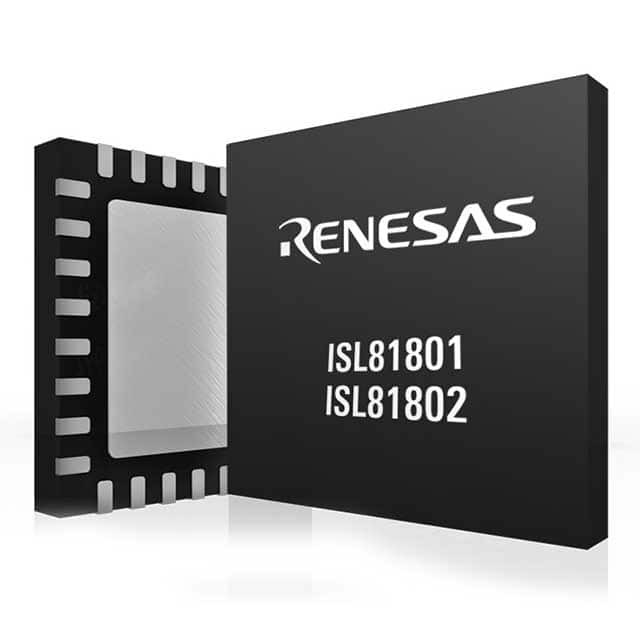

The Renesas ISL81801FRTZ-T7A is a bi-directional buck-boost DC DC switching controller designed for power management applications. It operates with a supply voltage ranging from 4.5V to 80V and offers a switching frequency between 100kHz and 600kHz.
This controller supports step-up and step-down voltage conversion with a positive output configuration. It features 4 outputs and 2 output phases, along with synchronous rectification and clock synchronization capabilities. The device includes various control features such as current limit, enable, off time control, and power good.
Packaged in a 32-WFQFN exposed pad, the ISL81801FRTZ-T7A is designed for surface mount applications. Its operating temperature range is -40°C to 125°C (TA). The component is RoHS3 compliant and has an MSL rating of 1.
This controller is suitable for applications requiring flexible voltage regulation, capable of both boosting and bucking the input voltage. Its robust design and wide operating parameters make it a versatile choice for various power supply designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 80V.
The switching frequency ranges from 100kHz to 600kHz.
The operating temperature range is -40°C to 125°C (TA).
It is in a 32-WFQFN exposed pad package.
The mounting type is surface mount.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
