ISL81601FVEZ-T The Renesas ISL81601FVEZ-T is a DC DC Switching Controller with a 4.5V to 60V operating voltage range. It is designed for surface mount applications.
Mfr Part #:

ISL81601FVEZ-T

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas ISL81601FVEZ-T is a DC DC Switching Controller with a 4.5V to 60V operating voltage range. It is designed for surface mount applications.
✓ Total Stock: 201,156 pcs
$ Price Range: $0.75

ISL81601FVEZ-T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
201,156 pcs
On Request
201156 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL81601FVEZ-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Sync
Control Features
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Phases
Output Type
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

ISL81601FVEZ-T Description

Short technical summary and product information.

The Renesas ISL81601FVEZ-T is a DC DC Switching Controller designed for power management applications. It operates within a voltage range of 4.5V to 60V and features a frequency range of 90kHz to 650kHz.



This controller supports both step-up and step-down (Buck-Boost) topologies, with a synchronous rectifier for improved efficiency. It offers a single positive output and includes control features such as current limit, enable, and power good signals.

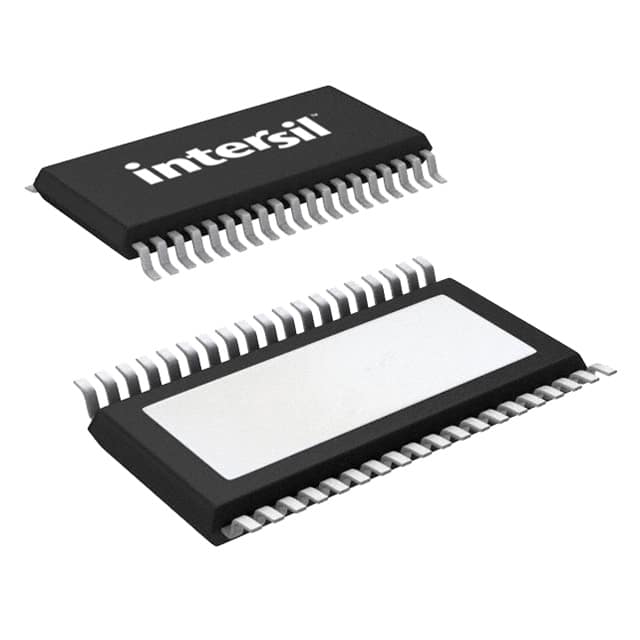

The device is packaged in a 38-TFSOP (0.173", 4.40mm Width) with an exposed pad, suitable for surface mounting. The operating temperature range is -40°C to 125°C (TA).



Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1 Unlimited, and REACH Unaffected status, though these are noted with low confidence and require verification.

ISL81601FVEZ-T Quick Information

Product Type: DC DC Switching Controller
Canonical Name: ISL81601FVEZ-T DC DC Switching Controller
Subcategory: PMIC - Voltage Regulators - DC DC Switching Controllers

ISL81601FVEZ-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISL81601FVEZ-T Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISL81601FVEZ-T Features

  • Operates from 4.5V to 60V input.
  • Frequency range of 90kHz to 650kHz.
  • Supports Buck-Boost topology.
  • Synchronous rectifier for efficiency.
  • Surface mount 38-TFSOP package.

ISL81601FVEZ-T Applications

  • Power supply regulation.
  • Battery powered systems.
  • Industrial power supplies.
  • Automotive applications.

ISL81601FVEZ-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the ISL81601FVEZ-T?

The input voltage range is 4.5V to 60V.

What is the switching frequency range of the ISL81601FVEZ-T?

The switching frequency range is 90kHz to 650kHz.

What is the operating temperature range of the ISL81601FVEZ-T?

The operating temperature range is -40°C to 125°C.

What package does the ISL81601FVEZ-T come in?

The ISL81601FVEZ-T is offered in a 38-HTSSOP package (38-TFSOP with exposed pad).

What topology does the ISL81601FVEZ-T use?

The ISL81601FVEZ-T uses a buck-boost topology.

Does the ISL81601FVEZ-T support synchronous rectification?

Yes, the ISL81601FVEZ-T supports synchronous rectification.

What control features does the ISL81601FVEZ-T include?

The ISL81601FVEZ-T includes current limit, enable, and power good control features.

ISL81601FVEZ-T Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
ISL81601FVEZ
ISL81601FVEZ
Renesas
The Renesas ISL81601FVEZ is a DC DC Switching Controller with a wide input voltage range of 4.5V to 60V. It utilizes a Buck-Boost topology and supports synchronous rectification.
View Part
