ISL6227IRZ The Renesas ISL6227IRZ is a special purpose regulator designed for DDR controller applications. It features a wide operating voltage range and surface mount packaging.
Mfr Part #:

ISL6227IRZ

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas ISL6227IRZ is a special purpose regulator designed for DDR controller applications. It features a wide operating voltage range and surface mount packaging.
✓ Total Stock: 12,000 pcs
$ Price Range: $0.75

ISL6227IRZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL6227IRZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Failure Rate
Mounting Type
Number of Outputs
Operating Temperature
Operating Voltage
Output Phases
Output Type
SVHC Present
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

ISL6227IRZ Description

Short technical summary and product information.

The Renesas ISL6227IRZ is a specialized integrated circuit for power management, specifically functioning as a controller for DDR memory systems. It operates within a voltage range of 0.9V to 5.5V, making it suitable for various DDR implementations.

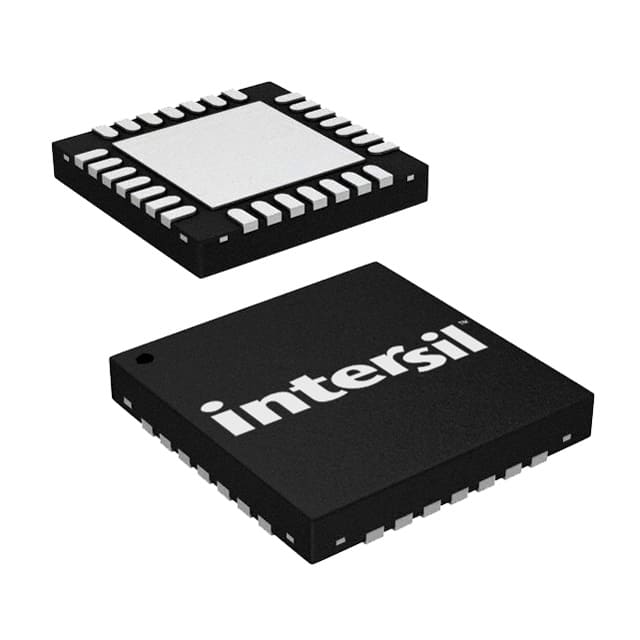

This device is designed for surface mount applications, utilizing a 28-VFQFN Exposed Pad package. It offers two output phases and is specified for operation across a temperature range of -40°C to 100°C. The part is described as an IC REG CTRLR BUCK 28TQFN, indicating its buck topology and controller function.



Key specifications include a supply voltage range of 3.3V to 25V and a synchronous rectifier capability. The Robust Ripple Regulator™ (R3) series designation suggests advanced ripple control features. Its application is primarily as a controller for DDR memory.



Packaged in a 28-QFN (5x5) or 28-QFN (4x4) configuration, the ISL6227IRZ is designed for efficient integration into electronic designs requiring precise DDR control.

ISL6227IRZ Quick Information

Product Type: Special Purpose Regulator
Series: Robust Ripple Regulator™ (R3)
Canonical Name: ISL6227IRZ
Subcategory: DC-DC Switching Controllers

ISL6227IRZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISL6227IRZ Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISL6227IRZ Features

  • Dual output DDR controller.
  • Wide 0.9V to 5.5V operating voltage.
  • Surface mountable 28-VFQFN package.
  • Operates from -40°C to 100°C.
  • RoHS3 Compliant status.

ISL6227IRZ Applications

  • Dual-output DDR memory power controller.
  • Synchronous buck for DDR VDDQ supply.
  • Regulates DDR termination voltage (VTT).
  • Supports DDR, DDR2, DDR3 memory systems.

ISL6227IRZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the ISL6227IRZ?

The supply voltage range is 3.3V to 25V.

What is the operating temperature range?

-40°C to 100°C.

What package is the ISL6227IRZ available in?

The package is listed as 28-WFQFN Exposed Pad, also referenced as 28-QFN (4x4).

What topology does the ISL6227IRZ use?

Buck topology.

Does the ISL6227IRZ support synchronous rectification?

Yes, it has a synchronous rectifier.

How many outputs does the ISL6227IRZ provide?

It provides two outputs.
