ISL59534IKEZ The Intersil ISL59534IKEZ is a special purpose analog switch featuring SPI communication and a 32:16 multiplexer. It operates at frequencies up to 300MHz.
Mfr Part #:

ISL59534IKEZ

Available from 1 distributors
Mfr Name: Intersil
Intersil
The Intersil ISL59534IKEZ is a special purpose analog switch featuring SPI communication and a 32:16 multiplexer. It operates at frequencies up to 300MHz.
✓ Total Stock: 2,024 pcs

ISL59534IKEZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,024 pcs
On Request
2024 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL59534IKEZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Features
Frequency
Mounting Type
Multiplexer
Number of Channels
Operating Temperature
Supplier Device Package
Voltage
View Similar Products (0)

ISL59534IKEZ Description

Short technical summary and product information.

This Intersil ISL59534IKEZ is a specialized analog switch designed for video applications. It offers a 32:16 multiplexer configuration and supports SPI features for control.



The device operates within a voltage range of 4.5V to 5.5V and can handle frequencies up to 300MHz. The operating temperature range is -40°C to 85°C (TA).

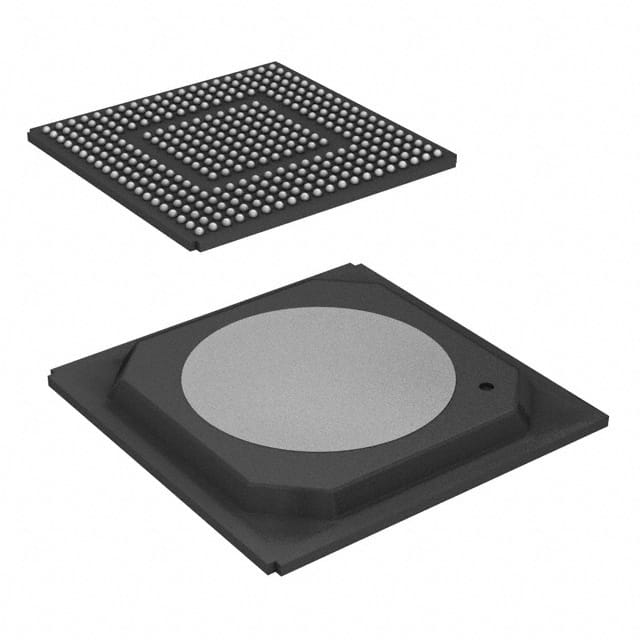

Packaged in a 356-HPBGA (27x27) with an exposed pad, this surface-mount component is suitable for various video signal routing needs. It has a single channel configuration.



The ISL59534IKEZ is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

ISL59534IKEZ Quick Information

Product Type: Analog Switch
Canonical Name: ISL59534IKEZ Analog Switch

ISL59534IKEZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISL59534IKEZ Features

  • 32:16 multiplexer configuration.
  • Operates at frequencies up to 300MHz.
  • Supports SPI communication features.
  • Wide operating voltage range.
  • Surface mountable 356-HPBGA package.

ISL59534IKEZ Applications

  • Ideal for high-speed video signal routing
  • Used in communication system switching
  • Suitable for test and measurement equipment
  • Supports multi-channel signal switching

ISL59534IKEZ FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ISL59534IKEZ?

The operating voltage is 4.5V to 5.5V.

What is the package type for the ISL59534IKEZ?

The package is a 356-BBGA Exposed Pad, specifically a 356-HPBGA (27x27) for surface mounting.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C (TA).

What is the RoHS status?

The RoHS status is RoHS3 Compliant.
