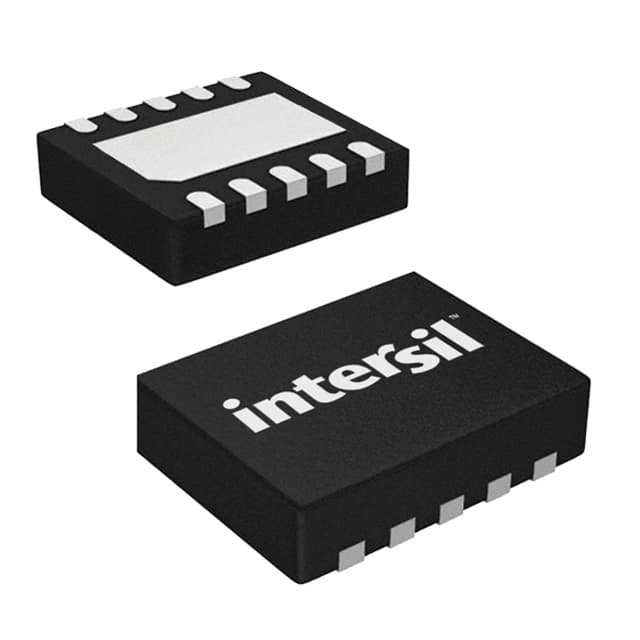

ISL54220IRTZ The Renesas ISL54220IRTZ is a dual SPDT USB switch IC designed for interface applications. It features a 2:1 multiplexer configuration and supports USB 2.0.
Mfr Part #:

ISL54220IRTZ

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas ISL54220IRTZ is a dual SPDT USB switch IC designed for interface applications. It features a 2:1 multiplexer configuration and supports USB 2.0.
✓ Total Stock: 26,100 pcs

ISL54220IRTZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
26,100 pcs
On Request
26100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL54220IRTZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Features
Lead Spacing
Mounting Type
Multiplexer
Number of Channels
On
Operating Temperature
Supplier Device Package
Switch Circuit
Voltage
View Similar Products (0)

ISL54220IRTZ Description

Short technical summary and product information.

The Renesas ISL54220IRTZ is an integrated circuit designed for USB switching applications. This dual SPDT (Single Pole Double Throw) switch IC functions as a 2:1 multiplexer, supporting USB 2.0 connectivity.



Key electrical specifications include an operating voltage range of 2.7V to 5.5V and a maximum on-resistance of 8 Ohms. The device offers a -3dB bandwidth of 742MHz, making it suitable for high-speed data transfer. It operates within a temperature range of -40°C to 85°C.



This component is designed for surface mounting and comes in a 10-TDFN (3x3) package, with the case outline specified as 10-VFDFN Exposed Pad. The features include Break-Before-Make operation, ensuring signal integrity during switching.



The ISL54220IRTZ is categorized under Interface - Analog Switches - Special Purpose, making it a versatile component for various electronic designs requiring USB signal management.

ISL54220IRTZ Quick Information

Product Type: USB Switch IC
Canonical Name: ISL54220IRTZ Dual SPDT USB Switch IC
Subcategory: Analog Switches - Special Purpose

ISL54220IRTZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISL54220IRTZ Features

  • Dual SPDT USB switch IC.
  • Supports USB 2.0 connectivity.
  • Low 8 Ohm maximum on-resistance.
  • Wide 2.7V to 5.5V operating voltage.
  • Surface mount 10-TDFN package.

ISL54220IRTZ Applications

  • Ideal for USB data routing.
  • Suitable for multiplexing USB signals.
  • Used in interface circuitry.
  • Enables signal switching applications.

ISL54220IRTZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ISL54220IRTZ?

The operating voltage range is 2.7V to 5.5V.

What is the maximum on-resistance of the ISL54220IRTZ?

The maximum on-resistance is 8 Ohm.

What is the operating temperature range for this USB switch IC?

The operating temperature range is -40°C to 85°C.

How many channels does the ISL54220IRTZ have?

It has 2 channels.

What type of switch circuit does the ISL54220IRTZ use?

It uses an SPDT switch circuit.

What is the package type for the ISL54220IRTZ?

It is supplied in a 10-TDFN (3x3) package.
