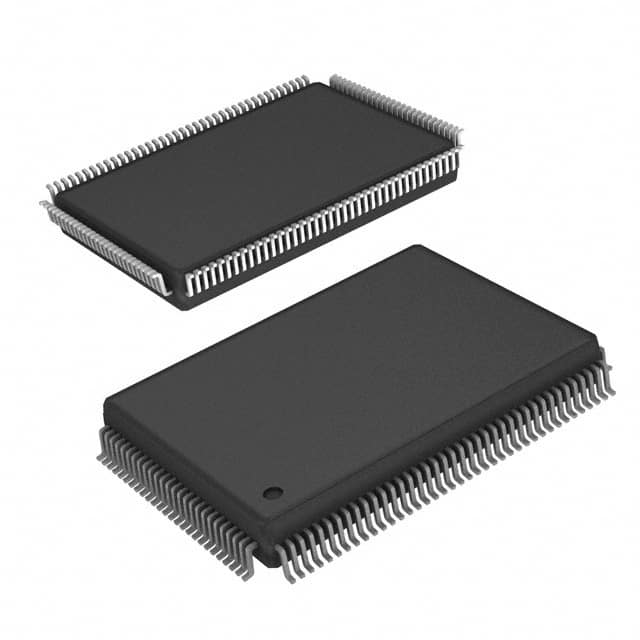

ISL54100CQZ The Renesas ISL54100CQZ is a TMDS regenerator and multiplexer designed for multimedia displays and test equipment. It features an I2C interface and operates within a 3V to 3.6V range.
Mfr Part #:

ISL54100CQZ

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas ISL54100CQZ is a TMDS regenerator and multiplexer designed for multimedia displays and test equipment. It features an I2C interface and operates within a 3V to 3.6V range.
✓ Total Stock: 9,452 pcs

ISL54100CQZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
9,452 pcs
On Request
9452 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL54100CQZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Interface
Lead Spacing
Mounting Type
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

ISL54100CQZ Description

Short technical summary and product information.

The ISL54100CQZ from Renesas is a high-performance TMDS (Transition Minimized Differential Signaling) timing regenerator and multiplexer. It is designed for applications such as multimedia displays and test equipment.



This device integrates a programmable equalizer and a clock data recovery (CDR) function for each of the 3 TMDS pairs in an HDMI or DVI signal. The regenerated TMDS data outputs are aligned to the regenerated TMDS clock signal, producing a clean, low-jitter DVI/HDMI signal suitable for TMDS receivers.



The ISL54100CQZ supports an I2C interface for control and operates within a voltage range of 3V to 3.6V. It is available in a 128-MQFP (14x20) package and is designed for surface mount installation.



Key features include its role as a TMDS regenerator and multiplexer, enabling its use in various configurations. The device is suitable for extending TMDS signal range and cleaning up noisy signals.

ISL54100CQZ Quick Information

Product Type: TMDS Regenerator and Multiplexer
Canonical Name: ISL54100CQZ TMDS Regenerator and Multiplexer
Subcategory: Specialized

ISL54100CQZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISL54100CQZ Features

  • Supports I²C interface for communication.
  • Operates within 3V to 3.6V voltage range.
  • Surface mount package for easy PCB integration.
  • Includes 128-BFQFP and 128-MQFP packaging.
  • RoHS3 compliant for environmental standards.

ISL54100CQZ Applications

  • Suitable for multimedia displays.
  • Used in test equipment applications.
  • Enables TMDS signal range extension.
  • Cleans up noisy TMDS signals.

ISL54100CQZ FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ISL54100CQZ?

The ISL54100CQZ operates within a voltage range of 3V to 3.6V.

What type of interface does the ISL54100CQZ use?

The ISL54100CQZ uses an I²C interface.

What is the package type for the ISL54100CQZ?

The ISL54100CQZ is available in a 128-MQFP (14x20) package.

How is the ISL54100CQZ mounted?

The ISL54100CQZ is designed for surface mount installation.

What are the applications for the ISL54100CQZ?

The ISL54100CQZ is used in multimedia displays and test equipment.
