ISL23328TFRUZ-TK The Renesas ISL23328TFRUZ-TK is a digital potentiometer IC with 100k Ohms resistance and 128 taps. It features an I²C interface and operates over a wide voltage range.
Mfr Part #:

ISL23328TFRUZ-TK

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas ISL23328TFRUZ-TK is a digital potentiometer IC with 100k Ohms resistance and 128 taps. It features an I²C interface and operates over a wide voltage range.
✓ Total Stock: 8,276 pcs

ISL23328TFRUZ-TK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
8,276 pcs
On Request
8276 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISL23328TFRUZ-TK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Features
Interface
Memory Type
Mounting Type
Number of Circuits
Number of Taps
Operating Temperature
Resistance
Resistance (Ohms)
Supplier Device Package
Tape & Reel
Taper
Temperature Coefficient (Typ)
Tolerance
Voltage
View Similar Products (0)

ISL23328TFRUZ-TK Description

Short technical summary and product information.

The ISL23328TFRUZ-TK from Renesas is a 2-channel digital potentiometer designed for various electronic applications. It offers a resistance value of 100k Ohms with a linear taper and a tolerance of ±20%. The device supports 128 distinct tap points, allowing for precise control.



This digital potentiometer operates with a voltage range of 1.2V to 5.5V and 1.7V to 5.5V, making it versatile for different power supply requirements. It communicates via an I²C interface and features selectable addresses. The operating temperature range is from -40°C to 125°C.

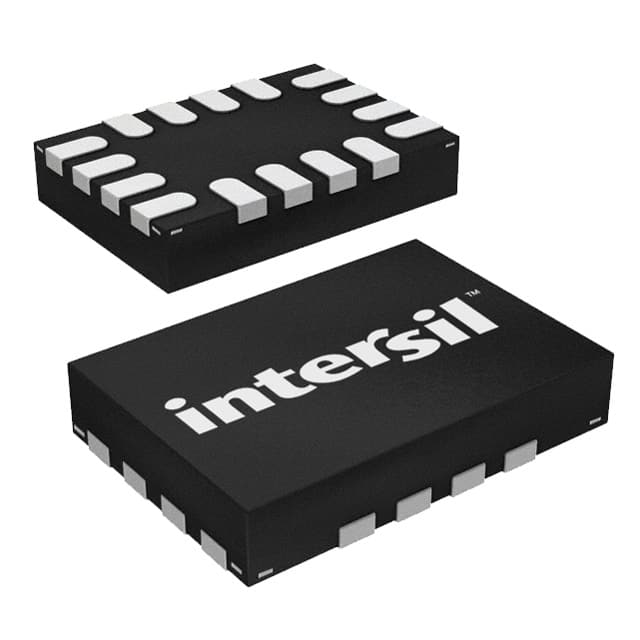

Packaged in a compact 16-UTQFN (2.6x1.8) surface-mount form factor, the ISL23328TFRUZ-TK is suitable for space-constrained designs. It is classified as a volatile memory type and has a typical temperature coefficient of 45ppm/°C. The component is RoHS3 compliant.

ISL23328TFRUZ-TK Quick Information

Product Type: Digital Potentiometer
Canonical Name: ISL23328TFRUZ-TK Digital Potentiometer
Subcategory: Data Acquisition

ISL23328TFRUZ-TK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISL23328TFRUZ-TK Features

  • 100k Ohm resistance with ±20% tolerance.
  • 128 distinct resistance taps.
  • I²C interface with selectable address.
  • Wide operating voltage range.
  • Surface mount 16-UTQFN package.

ISL23328TFRUZ-TK Applications

  • Used for adjustable voltage division.
  • Suitable for gain control circuits.
  • Ideal for sensor calibration.
  • Applications requiring digital resistance control.

ISL23328TFRUZ-TK FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance of the ISL23328TFRUZ-TK digital potentiometer?

The resistance of the ISL23328TFRUZ-TK is 100k Ohms.

What is the operating temperature range for this digital potentiometer?

The operating temperature range for the ISL23328TFRUZ-TK is -40°C to 125°C.

What is the voltage range for the ISL23328TFRUZ-TK?

The operating voltage range is 1.2V to 5.5V and 1.7V to 5.5V.

What type of interface does the ISL23328TFRUZ-TK use?

The ISL23328TFRUZ-TK uses an I²C interface.

What package is the ISL23328TFRUZ-TK supplied in?

The ISL23328TFRUZ-TK is supplied in a 16-UTQFN (2.6x1.8) package.
