| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,957 pcs
|
6957 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| California Proposition 65 | |
| China RoHS | |
| Color | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Standard Package Quantity | |
| Tape & Reel | |
| Wire Gauge (AWG) |

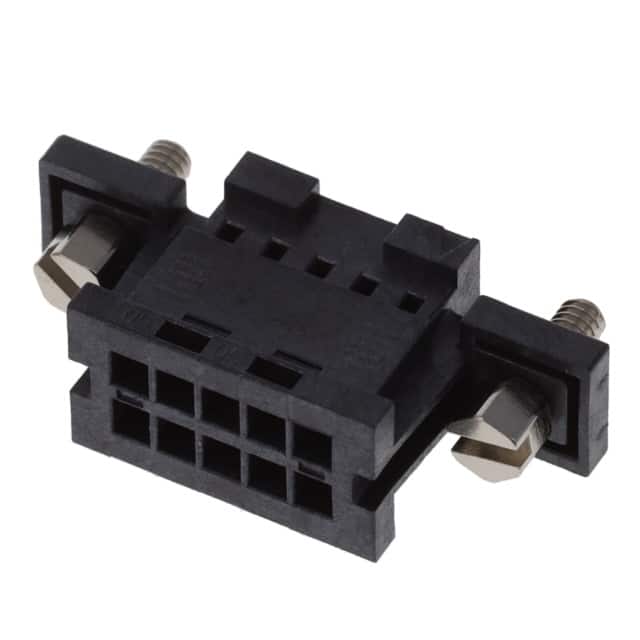

The Samtec ISD2-05-D-S is a 10-position, double-row female socket housing from the Tiger Eye ISD2 series. It features a 2.00mm (0.079") pitch and row spacing, designed for wire-to-board or wire-to-wire applications. The housing uses a latch lock fastening mechanism and includes a mating flange for secure connections.
This connector housing accepts 24 to 30 AWG wire and uses crimp termination contacts (Samtec CC81L or CC81R). It is a free hanging (in-line) mount design, making it suitable for cable assembly applications. The housing is black in color and is packaged in tubes of 23 pieces.
The ISD2-05-D-S is RoHS, REACH, and Halogen Free compliant. It has a Moisture Sensitivity Level (MSL) of 1 (unlimited). The housing mates with Samtec S2SD and S2SDT cable assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.89 | $3.89 |
| 23+ | $3.74 | $3.74 |
| 1,012+ | $3.08 | $3.08 |
| 2,507+ | $2.99 | $2.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ISD2-05-D-S has 10 positions arranged in 2 rows.
The pitch is 2.00mm (0.079").
It uses free hanging (in-line) mounting.
It accepts 24 to 30 AWG wire.
It uses a latch lock fastening type and includes a mating flange.
Yes, it is RoHS compliant.
