| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,641 pcs
|
9641 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulator Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range (PVC) | |
| Operating Temperature Range (Teflon) | |
| Packaging Type | |
| Pitch | |
| Plating | |
| Prop 65 | |
| Row Spacing | |
| SVHC Present | |
| Tape & Reel | |
| Voltage Rating | |
| Wire Gauge |

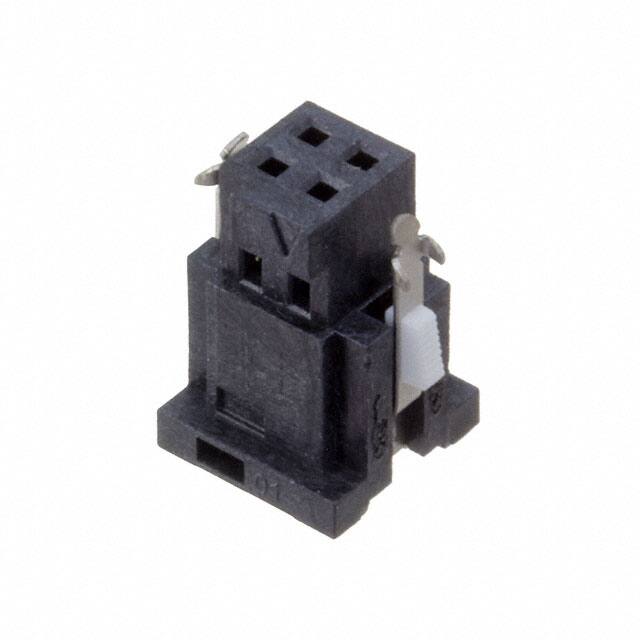

The Samtec ISD2-02-D-M is a rectangular connector housing from the Tiger Eye series, designed for wire-to-board and wire-to-wire applications. It has 4 positions arranged in 2 rows with a 2.00mm (0.079") pitch and 2.00mm row spacing. The housing accepts female socket contacts and uses crimp termination, supporting 24 to 30 AWG wire. The fastening type is latch lock, providing secure mating, and the mounting type is free hanging (in-line).
The insulator is made of black Liquid Crystal Polymer (LCP), and the contacts are beryllium copper with gold over 50 µ" nickel plating. Additional features include retention latches for improved contact retention. The electrical ratings are 3.8A per pin (2 pins powered) and 250VAC. Operating temperature range is -10°C to +105°C with PVC cable and -40°C to +125°C with Teflon cable.
The housing is packaged in a tube of 60 parts per package. It is RoHS3 compliant, REACH unaffected, halogen free, and has MSL 1 (unlimited). This housing mates with Samtec S2SD series cable assemblies, making it suitable for a variety of cable interconnection needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.82 | $2.82 |
| 60+ | $2.39 | $2.39 |
| 120+ | $2.22 | $2.22 |
| 1,020+ | $1.73 | $1.73 |
| 2,040+ | $1.71 | $1.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions arranged in 2 rows.
The pitch is 2.00mm (0.079 inches).
The current rating is 3.8A per pin when 2 pins are powered.
The voltage rating is 250VAC.
It is designed for free hanging (in-line) mounting.
It accepts 24 to 30 AWG wire.
The range depends on cable type: -10°C to +105°C for PVC, and -40°C to +125°C for Teflon cable.
