| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

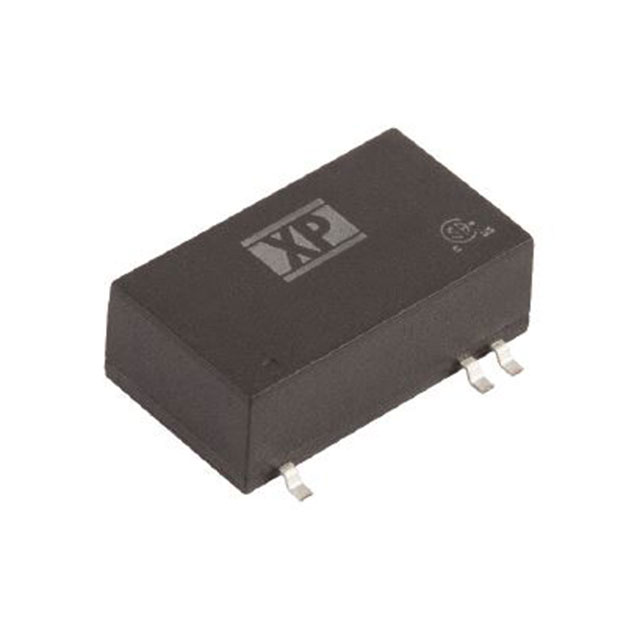

The XP Power ISC0348S24 is a high-efficiency isolated DC-DC converter designed for commercial ITE applications. It delivers a regulated 24V output at 125mA with a power rating of 3W. The converter boasts an efficiency of 80% and includes protection features such as overcurrent protection (OCP), short-circuit protection (SCP), and under-voltage lockout (UVLO). Remote on/off control is available for power management.
Housed in a compact 16-SMD module with 7 leads, the ISC0348S24 is suitable for surface mount assembly. Its dimensions are 24.0mm x 13.7mm x 8.0mm, and it operates over a wide temperature range of -40°C to 100°C. The module meets safety standard IEC/EN 62368-1, making it appropriate for use in information technology equipment.
The converter is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $22.88 | $22.88 |
| 5+ | $22.19 | $22.19 |
| 10+ | $21.51 | $21.51 |
| 100+ | $21.48 | $21.48 |
| 500+ | $21.47 | $21.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24V nominal.
16-SMD Module, 7 Leads surface mount package.
-40°C to 100°C.
RoHS3 compliant (unverified per available data).
125mA.
Overcurrent protection, short-circuit protection, and under-voltage lockout.
80%.
