| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Interface | |
| Interrupt Output | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Voltage |
The Intersil IS82C55AZ is a parallel input/output (I/O) expander integrated circuit. It is designed to provide 24 I/O lines and operates with an open drain output type. The device supports a voltage range of 4.5V to 5.5V and draws a current of 2.5mA. Its operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions.

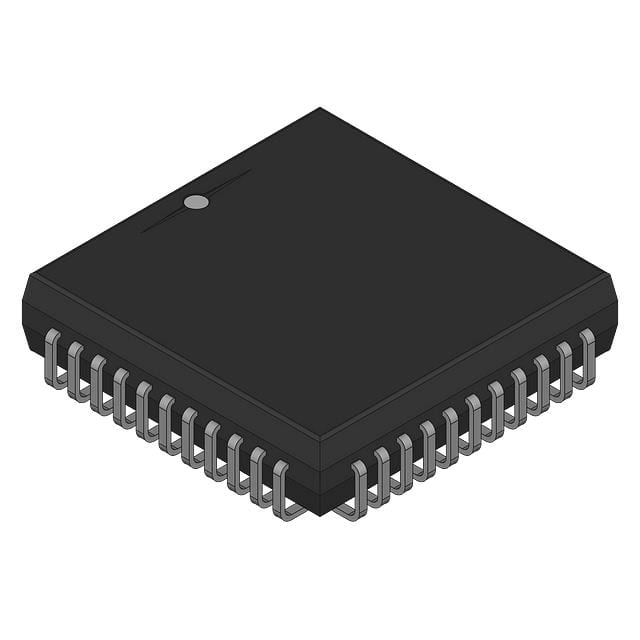

This component is packaged in a 44-LCC (J-Lead) format, with a specific supplier package designation of 44-PLCC (16.58x16.58). The mounting type is surface mount, facilitating integration into printed circuit boards. The IS82C55AZ features a parallel interface and does not have an interrupt output.
This IO expander is suitable for applications requiring additional parallel I/O capabilities where a surface-mount solution is needed. Its operating characteristics make it a versatile component for embedded systems and control applications.
The IS82C55AZ operates between 4.5V and 5.5V.
The IS82C55AZ is available in a 44-LCC (J-Lead) package, with a supplier package designation of 44-PLCC (16.58x16.58).
The operating temperature range for the IS82C55AZ is -40°C to 85°C.
No, the IS82C55AZ does not have an interrupt output.
