IS82C5496 The Intersil IS82C5496 is a programmable timer IC featuring 3 timer functions. It operates within a voltage range of 4.5V to 5.5V.
Mfr Part #:

IS82C5496

Available from 1 distributors
Mfr Name: Intersil
Intersil
The Intersil IS82C5496 is a programmable timer IC featuring 3 timer functions. It operates within a voltage range of 4.5V to 5.5V.
✓ Total Stock: 6,000 pcs

IS82C5496 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IS82C5496 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Mounting Type
Operating Temperature
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

IS82C5496 Description

Short technical summary and product information.

The Intersil IS82C5496 is a programmable timer integrated circuit designed for various timing applications. This device offers three distinct timer functions, providing flexibility in system design. It operates within a voltage range of 4.5V to 5.5V and has an operating temperature range of -40°C to 85°C.

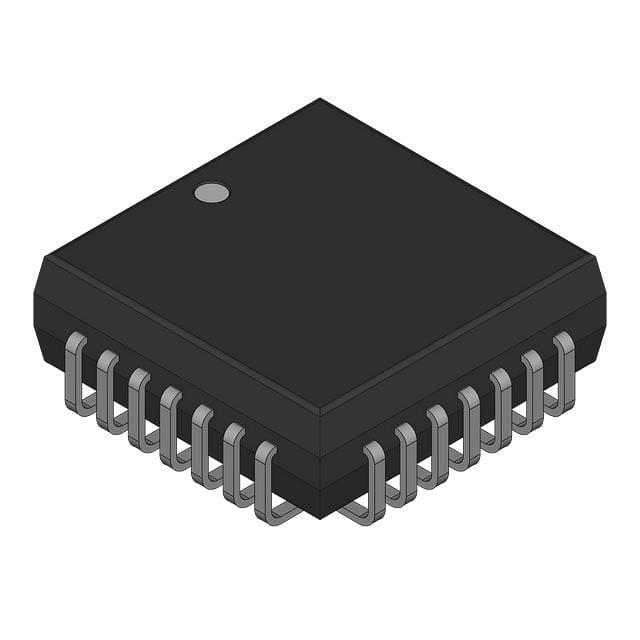

The IS82C5496 is available in a 28-PLCC surface mount package, facilitating integration into compact electronic assemblies. Its design is suitable for applications requiring precise timing control and reliable operation.



Key electrical characteristics include an operating current of 10 mA and a frequency of 8 MHz. The component is designed for surface mounting, making it compatible with standard automated assembly processes.

IS82C5496 Quick Information

Product Type: Programmable Timer
Canonical Name: IS82C5496 Programmable Timer
Subcategory: Programmable Timers and Oscillators

IS82C5496 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IS82C5496 Features

  • Three independent timers for versatile control
  • Operates at 8 MHz frequency
  • Voltage range of 4.5V to 5.5V
  • Surface mount 28-PLCC package
  • RoHS3 compliant

IS82C5496 Applications

  • Used in digital clock circuits
  • Suitable for industrial timers
  • Ideal for embedded control systems
  • Applied in portable electronic devices

IS82C5496 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the IS82C5496?

The IS82C5496 operates from 4.5V to 5.5V.

What package type is the IS82C5496 available in?

The IS82C5496 is available in a 28-PLCC (J-Lead) package.

What is the operating temperature range for the IS82C5496?

The operating temperature range for the IS82C5496 is -40°C to 85°C.

Is the IS82C5496 RoHS compliant?

The IS82C5496 is RoHS3 Compliant.
