| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,745 pcs
|
8745 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Failure Rate | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Style | |
| Mounting Type | |
| Operating Temperature | |
| Propagation Delay (Max) | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |
The Renesas IS82C54 is a programmable timer integrated circuit belonging to the Clock & Timer ICs category. It is designed for applications requiring precise timing functions and operates with a supply voltage ranging from 4.5V to 5.5V.

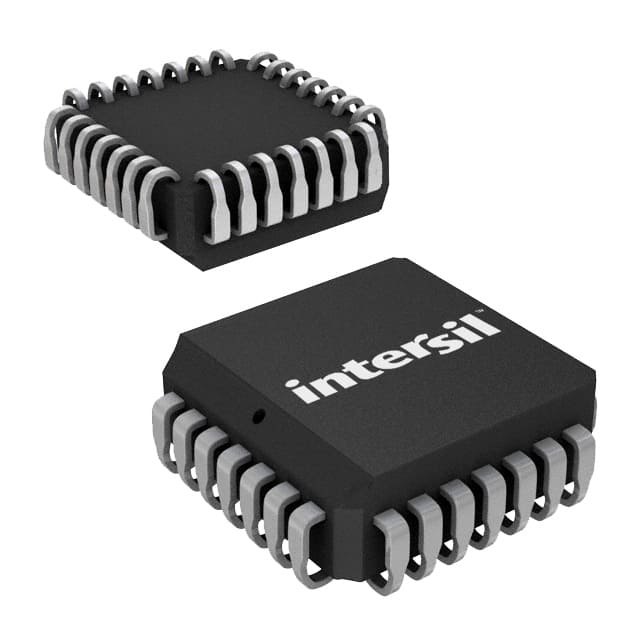

Key electrical specifications include an operating frequency of 8MHz and a maximum propagation delay of 150 Ns. The device supports both high and low level output currents of 2.5 mA. It is housed in a 28-PLCC surface mount package.
With a minimum operating temperature of -40°C and a maximum of +85°C, the IS82C54 is suitable for a range of environmental conditions. The package dimensions are approximately 11.58 mm in length and width, with a height of 3.69 mm.
This component is classified under Timers & Support Products and is manufactured by Renesas. It is suitable for various electronic designs requiring reliable timing control.
The IS82C54 operates within a supply voltage range of 4.5V to 5.5V.
The IS82C54 has an operating temperature range from -40°C to +85°C.
The IS82C54 is available in a 28-PLCC package.
The IS82C54 operates at a frequency of 8MHz.
The IS82C54 is RoHS3 Compliant.
The MSL for the IS82C54 is 1 Unlimited.
