IS45S16160D-7BLA1 The Integrated Silicon Solution IS45S16160D-7BLA1 is a 256Mbit SDRAM memory IC. It operates with a 143MHz clock frequency and features a 5.4ns access time.
Mfr Part #:

IS45S16160D-7BLA1

Available from 2 distributors
Mfr Name: Integrated Silicon Solution
Integrated Silicon Solution
The Integrated Silicon Solution IS45S16160D-7BLA1 is a 256Mbit SDRAM memory IC. It operates with a 143MHz clock frequency and features a 5.4ns access time.
✓ Total Stock: 56,290 pcs
$ Price Range: $1.28

IS45S16160D-7BLA1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
49,000 pcs
On Request
49000 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
7,290 pcs
On Request
7290 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IS45S16160D-7BLA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Clock Frequency
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
SVHC Present
Supplier Device Package
Supplier Package
Technology
Voltage
View Similar Products (0)

IS45S16160D-7BLA1 Description

Short technical summary and product information.

The Integrated Silicon Solution IS45S16160D-7BLA1 is a 256Mbit Synchronous DRAM (SDRAM) memory integrated circuit. It is designed for high-speed data transfer applications, utilizing a pipeline architecture where all input and output signals are referenced to the rising edge of the clock input.



Key electrical specifications include a clock frequency of 143 MHz and an access time of 5.4 ns. The device operates from a single power supply ranging from 3V to 3.6V, with an LVTTL interface. It supports programmable burst lengths (1, 2, 4, 8, full page) and burst sequences (Sequential/Interleave), along with Auto Refresh (CBR) and Self Refresh capabilities. The memory organization is 16M x 16, and it requires 8K refresh cycles every 64ms for commercial and industrial grades.

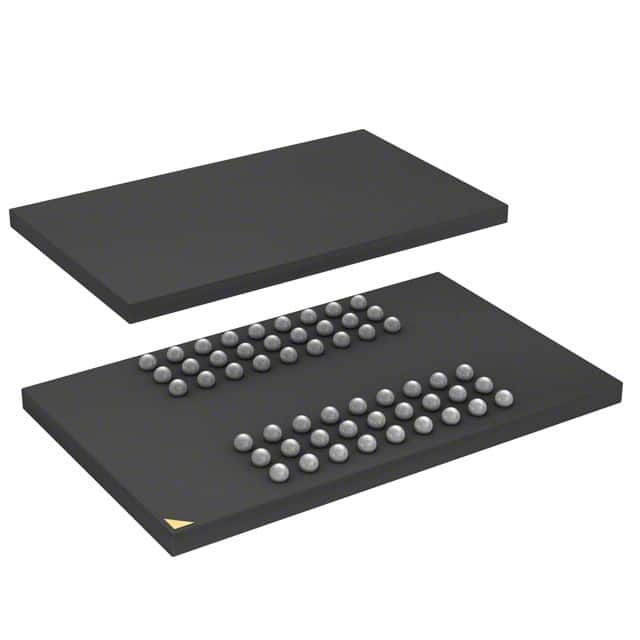

This SDRAM IC is housed in a 54-TFBGA package and is designed for surface mount applications. The operating temperature range is specified as -40°C to 85°C (TA). Its synchronous nature and programmable features make it suitable for various embedded systems requiring efficient memory access.

IS45S16160D-7BLA1 Quick Information

Product Type: SDRAM Memory IC
Canonical Name: Integrated Silicon Solution IS45S16160D-7BLA1 SDRAM Memory IC
Subcategory: Memory

IS45S16160D-7BLA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IS45S16160D-7BLA1 Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

IS45S16160D-7BLA1 Features

  • 256Mbit SDRAM memory IC
  • 143 MHz clock frequency
  • 5.4 ns access time
  • 3V to 3.6V operating voltage
  • 54-TFBGA surface mount package

IS45S16160D-7BLA1 Applications

  • High-speed data transfer systems
  • Embedded systems memory
  • Applications requiring volatile memory

IS45S16160D-7BLA1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

3V to 3.6V, nominal 3.3V.

What is the operating temperature range?

-40°C to 85°C.

What package does this part come in?

54-TFBGA (8x13mm) surface mount package.

What is the maximum clock frequency?

166 MHz at CAS latency 3, 143 MHz typical, 100 MHz at CAS latency 2.

What is the memory size?

256Mbit.

What is the memory organization?

16M x 16.

What type of memory is this?

SDRAM (Synchronous DRAM).
