| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,897 pcs
|
7897 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The IS43LQ16256A-062BLI is a 4 Gigabit (Gb) CMOS LPDDR4 SDRAM manufactured by Integrated Silicon Solution, Inc. (ISSI). This device utilizes a 16n pre-fetch DDR architecture for high-speed operation, achieving a maximum clock frequency of 1.6 GHz, which translates to 3.2 Gbps data transfer rates.
It supports low-voltage core and I/O power supplies, with VDD1 ranging from 1.70V to 1.95V, and VDD2 and VDDQ operating between 1.06V and 1.17V for LPDDR4. For LPDDR4X, VDDQ operates between 0.57V and 0.65V. The memory interface is parallel, and the device is organized as 256M x 16.

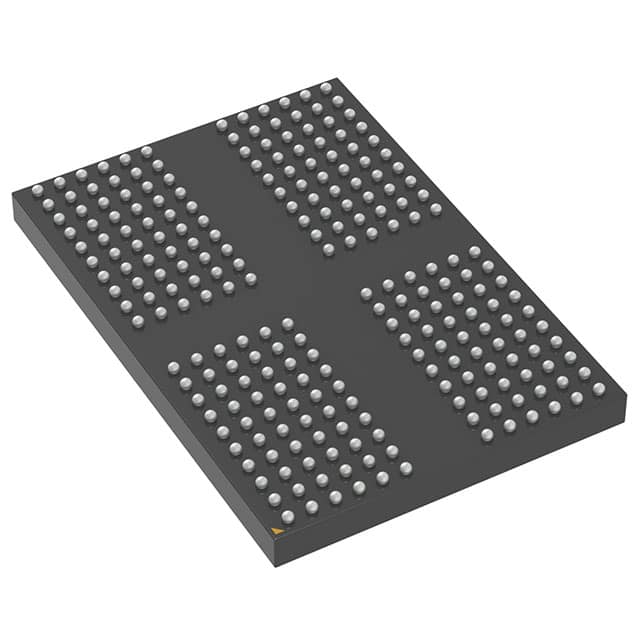

The IS43LQ16256A-062BLI is available in a 200-ball VFBGA package measuring 10x14.5mm and is designed for surface mounting. It operates within an industrial temperature range of -40°C to 95°C (TC). The device also features programmable burst lengths of 16 or 32 and supports ZQ calibration and clock-stop capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The memory size is 4Gbit.
The maximum clock frequency is 1.6 GHz.
The operating voltages are 1.70-1.95V for VDD1, 1.06-1.17V for VDD2, and 1.06-1.17V for VDDQ (LPDDR4) or 0.57-0.65V for VDDQ (LPDDR4X).
The operating temperature range is -40°C to 95°C (TC).
It is supplied in a 200-VFBGA (10x14.5mm) package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
