| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,634 pcs
|
12634 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,003 pcs
|
2003 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Transfer Ratio (Max) | |
| Current Transfer Ratio (Min) | |
| Input Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Output Voltage | |
| Reverse Current | |
| Rise | |
| Storage Temperature | |
| Tape & Reel | |
| Vce Saturation (Max) | |
| Voltage |

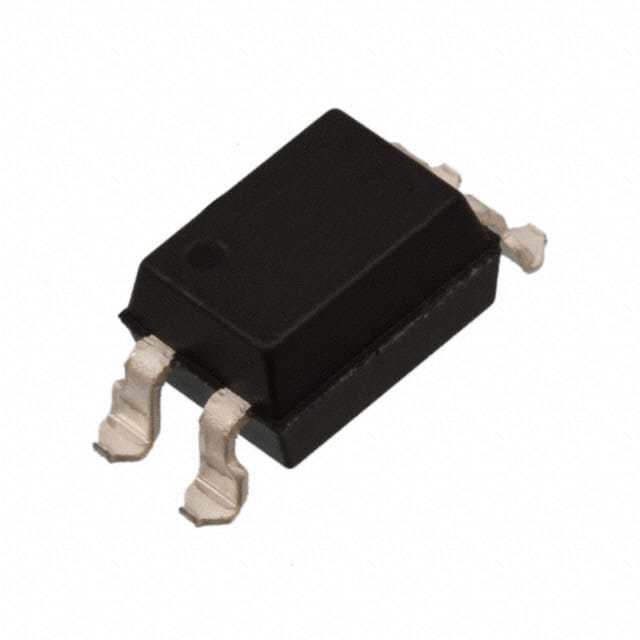

The IS181D from Isocom Components is an optocoupler featuring an infrared light-emitting diode optically coupled to an NPN silicon phototransistor. It is housed in a space-efficient 4-pin mini-flat SMD package, suitable for surface mounting.
This optocoupler provides an isolation voltage of 3750Vrms and operates with a DC input type. Key electrical characteristics include a maximum forward current of 50mA and a maximum output collector current of 50mA. The current transfer ratio ranges from a minimum of 300% to a maximum of 600% at 5mA input current, with a typical forward voltage of 1.2V.
The device operates across a wide temperature range of -55°C to 100°C. Its output transistor features a collector-emitter breakdown voltage of 80V and a saturation voltage of up to 200mV. Rise and fall times are typically 4µs and 3µs, respectively.
Applications for the IS181D include computer terminals, industrial system controllers, measuring instruments, and signal transmission between systems of different potentials and impedance. It is available in tape and reel packaging with 3000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IS181D optocoupler has an AC isolation voltage of 3750VRMS.
The IS181D operates within a temperature range of -55°C to 100°C.
The current transfer ratio for the IS181D is a minimum of 300% and a maximum of 600% at 5mA input current.
The IS181D optocoupler has a transistor output.
The IS181D is supplied in a 4-SMD, Gull Wing package.
The IS181D is RoHS3 Compliant.
