| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Embedded | |
| Function | |
| Interface | |
| Operating Temperature Range | |
| Pixel Format | |
| Primary Attributes | |
| Supplied Contents | |
| Type | |
| Utilized IC | |
| Viewing Area |

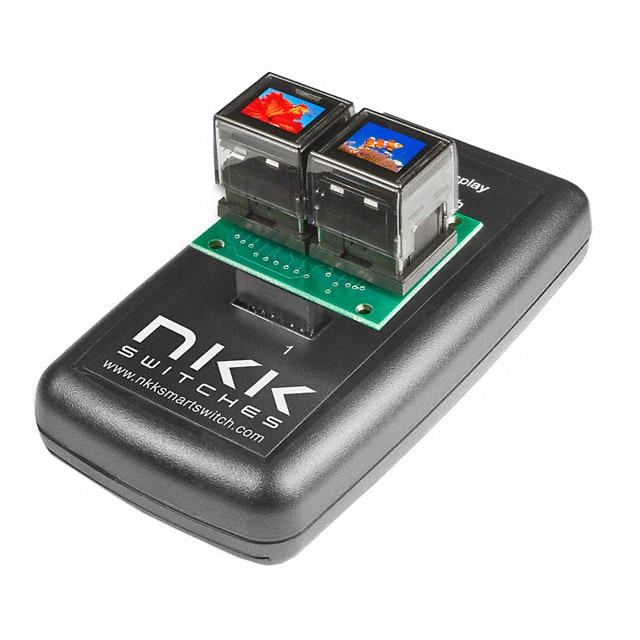

The IS-DEV KIT-7 is a development kit from NKK Switches designed for evaluating and prototyping OLED programmable switches. It includes two OLED switches with a 64RGB x 48 pixel display capable of 65,536 colors (16-bit). The switches utilize an SPI serial interface for communication and are driven by an ISC15ANP4 ASIC. The kit operates with a logic/interface supply voltage of 2.4V to 3.5V (typical 2.8V) and a drive supply of 15.0V to 17.0V (typical 16.0V). Typical current consumption is 3.8 mA for the drive system and 0.16 mA for logic/interface. The display has an operating life of 30,000 hours at 100 cd/m² or 60,000 hours at 50 cd/m² (40% pixels on). The kit is rated for an operating temperature range of -20°C to +70°C and storage from -30°C to +80°C. Supplied contents include board(s), cable(s), and a power supply. This kit is suitable for engineers developing human-machine interfaces and embedded systems requiring programmable display switches.
Logic/interface supply: 2.4V to 3.5V (typical 2.8V). Drive supply: 15.0V to 17.0V (typical 16.0V).
-20°C to +70°C.
RoHS3 compliant (unverified).
Serial (SPI) interface.
64RGB x 48 pixels.
65,536 colors (16-bit).
3.8 mA in all-pixels-on mode (drive system) and 0.16 mA for logic/interface.
