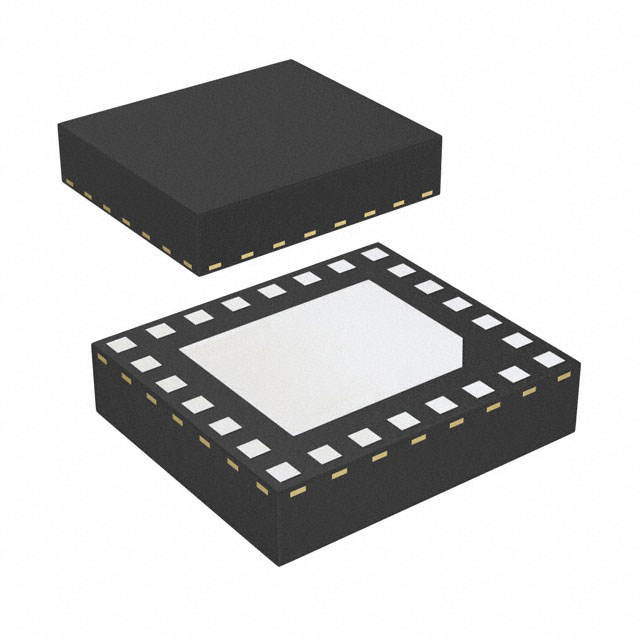

IRSM807-105MHTR The Infineon Technologies IRSM807-105MHTR is a 10A, 500V Half-Bridge Driver IC designed for motor drive applications. It features a compact 31-PQFN (8x9mm) surface mount package.
Mfr Part #:

IRSM807-105MHTR

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies IRSM807-105MHTR is a 10A, 500V Half-Bridge Driver IC designed for motor drive applications. It features a compact 31-PQFN (8x9mm) surface mount package.
✓ Total Stock: 4,000 pcs
$ Price Range: $0.75

IRSM807-105MHTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRSM807-105MHTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Fault Protection
Features
Interface
Junction Temperature
Load Type
Mounting Type
Operating Temperature
Output Configuration
Rds On (Typ)
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

IRSM807-105MHTR Description

Short technical summary and product information.

The Infineon Technologies IRSM807-105MHTR is a Half-Bridge Driver IC with a blocking voltage of 500V and a continuous output current of 10A per MOSFET. It is designed for advanced appliance motor drive applications, offering an integrated gate driver with bootstrap functionality.



This IC utilizes UMOS technology and has an Rds(on) of 580mOhm typical. It operates with a maximum junction temperature of 150°C and includes under-voltage lockout (UVLO) for fault protection. The logic input is 3.3V compatible.



The IRSM807-105MHTR is housed in a 31-PQFN (8x9mm) package, suitable for surface mounting. Its compact footprint and isolation voltage of 1500VRMS make it ideal for space-constrained designs. The device is RoHS3 compliant and has an MSL rating of 1.



This component is suitable for applications requiring AC motor control, such as energy-efficient fans and pumps, operating within a 400V DC bus input voltage range.

IRSM807-105MHTR Quick Information

Product Type: Half-Bridge Driver IC
Canonical Name: Infineon Technologies IRSM807-105MHTR Half-Bridge Driver IC

IRSM807-105MHTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IRSM807-105MHTR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

IRSM807-105MHTR Features

  • Integrated gate drivers with bootstrap functionality.
  • Low Rds(on) Trench FREDFET technology.
  • Under-voltage lockout for both channels.
  • Compact 31-PQFN (8x9mm) surface mount package.
  • 1500VRMS minimum isolation voltage.

IRSM807-105MHTR Applications

  • Suitable for advanced appliance motor drives.
  • Designed for energy-efficient fans and pumps.
  • Ideal for space-constrained applications.
  • Used in AC motor control systems.

IRSM807-105MHTR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the blocking voltage of the IRSM807-105MHTR?

The blocking voltage (BVDSS) for the IRSM807-105MHTR is 500V.

What is the maximum continuous output current per MOSFET?

The DC output current per MOSFET (IO) is 10A at 25°C.

What is the operating junction temperature range?

The maximum operating junction temperature (TJ) is 150°C.

What package type is the IRSM807-105MHTR supplied in?

The IRSM807-105MHTR is supplied in a 31-PQFN (8x9mm) package, also referred to as 31-PowerVQFN.

What is the Rds(on) typical value for this component?

The Rds(on) typical value is 580mOhm.

What are the main applications for the IRSM807-105MHTR?

This component is designed for advanced appliance motor drive applications, such as energy-efficient fans and pumps, and AC motor control.
