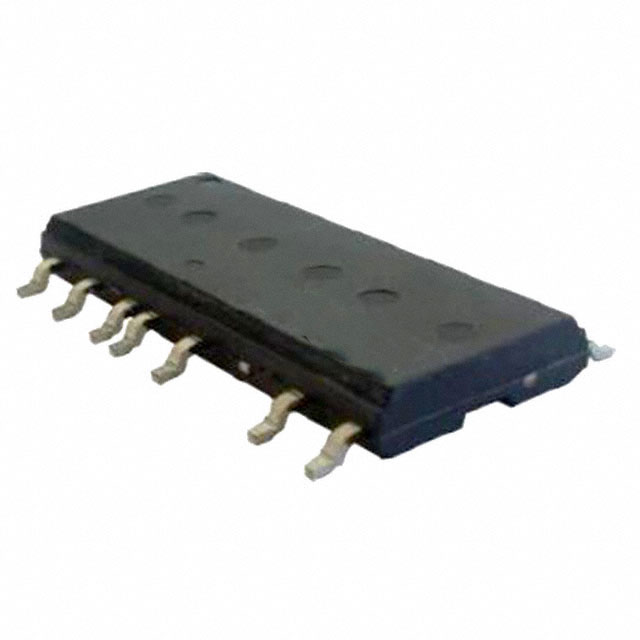

IRSM515-024PA The Infineon Technologies IRSM515-024PA is a 3-phase integrated power module designed for appliance motor drive applications. It offers a 250V rating and a peak output current of 7A.
Mfr Part #:

IRSM515-024PA

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies IRSM515-024PA is a 3-phase integrated power module designed for appliance motor drive applications. It offers a 250V rating and a peak output current of 7A.
✓ Total Stock: 18,000 pcs
$ Price Range: $0.75

IRSM515-024PA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
18,000 pcs
On Request
18000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRSM515-024PA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Fault Protection
Features
Interface
Load Type
Mounting Type
Operating Temperature
Output Configuration
Rds On (Typ)
SVHC Present
Supplier Device Package
Technology
Voltage
View Similar Products (0)

IRSM515-024PA Description

Short technical summary and product information.

The IRSM515-024PA from Infineon Technologies is a 3-phase integrated power module (IPM) suitable for advanced appliance motor drive applications, including energy-efficient fans and pumps. It utilizes Trench FREDFET technology and a high-voltage, rugged half-bridge driver.



Key electrical specifications include a blocking voltage of 250V and a DC output current of 1.6A per MOSFET, with a peak output current of 7A. The module operates within a junction temperature range of -40°C to 150°C and features under-voltage lockout (UVLO) for fault protection. It supports a supply voltage of 13.5V to 16.5V and has an Rds(on) of 1.8 Ohm typical.



This IPM is designed for optimized low EMI characteristics and includes integrated bootstrap functionality. It is compatible with 3.3V logic and offers tolerance to negative transient voltages. The module is housed in a 23-SOP package and is designed for surface mounting, making it suitable for compact designs in AC motor applications.

IRSM515-024PA Quick Information

Product Type: Integrated Power Module
Canonical Name: Infineon Technologies IRSM515-024PA 3-phase Integrated Power Module
Subcategory: Isolated Gate Driver IC

IRSM515-024PA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IRSM515-024PA Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

IRSM515-024PA Features

  • 250V, 3-phase inverter with gate drivers.
  • Low 2.3 Ohm (max) RDS(on) Trench FREDFET.
  • Integrated bootstrap functionality included.
  • Under-voltage lockout for all channels.
  • Surface mount 23-SOP package.

IRSM515-024PA Applications

  • Designed for appliance motor drives.
  • Suitable for energy efficient fans.
  • Ideal for pump motor applications.
  • Used in AC motor control systems.

IRSM515-024PA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

13.5V to 16.5V.

What is the package type?

23-SOP (PowerSMD Module).

What is the operating temperature range?

-40°C to 150°C (junction).

What is the maximum output current?

1.6A continuous, 7A peak per MOSFET.

What is the RDS(on) of the MOSFET?

2.3Ω maximum at 25°C.
