Mfr Part #:

IRSM005-800MHTR

Name: IRSM005-800MHTR
Brand: Infineon Technologies
SKU: IRSM005-800MHTR

Description:

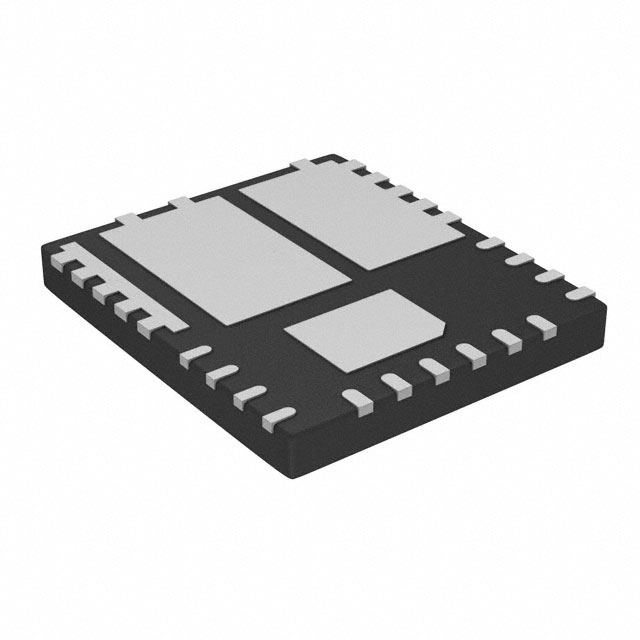

IC HALF BRIDGE DRIVER 80A 27QFN

Stock on Request

IRSM005-800MHTR Description

Short technical summary and product information.

IC HALF BRIDGE DRIVER 80A 27QFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

IRSM005-800MH

Infineon Technologies

IC HALF BRIDGE DRIVER 80A 27QFN

Category	Full Half-Bridge Drivers
Manufacturer Name	Infineon Technologies
Applications	AC Motors, DC Motors, DC-DC Converters, General Purpose
Current	80A
Fault Protection	UVLO
Features	Bootstrap Circuit
Interface	Logic
Load Type	Inductive, Capacitive
Mounting Type	Surface Mount
Operating Temperature	150°C (TJ)
Output Configuration	Half Bridge
Rds On (Typ)	2.7mOhm
Supplier Device Package	27-PQFN (7x8)
Technology	Power MOSFET
Voltage	40V (Max)
