Mfr Part #:

IRSM005-301MH

Mfr Name: Infineon

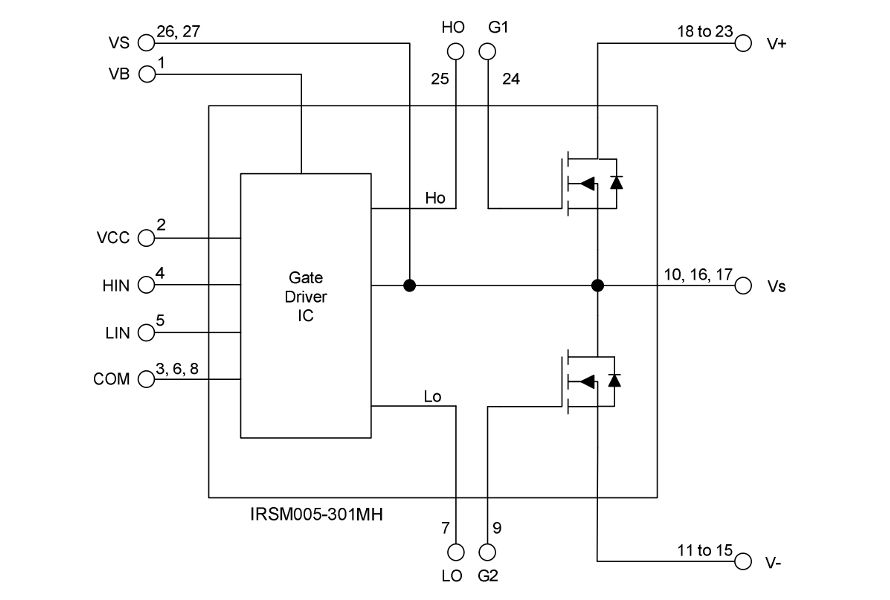

The Infineon IRSM005-301MH is a general-purpose half-bridge intelligent power module with an integrated gate driver. It is designed for low voltage applications requiring high power density.

✓ Total Stock: 5,470 pcs

$ Price Range: $3.68

IRSM005-301MH Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	5,450 pcs On Request	5450 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	20 pcs On Request	20 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

IRSM005-301MH Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Form	Tape and Reel
Quantity	2000

View Similar Products (0)

IRSM005-301MH Description

Short technical summary and product information.

The Infineon IRSM005-301MH is a Half-Bridge Intelligent Power Module (IPM) featuring an integrated gate driver, housed in a compact 7x8mm PQFN package. This general-purpose building block is suitable for various low voltage applications where high power density is critical, such as advanced motor drives and DC/DC converters.

Key electrical specifications include a 100V drain-to-source voltage and a maximum DC current of 30A per MOSFET at 25°C. It boasts low on-resistance HEXFETs with a typical value of 16mΩ at 25°C. The module includes undervoltage lockout on Vcc and Vbs, and offers independent gate drive synchronized with the logic input. The gate drive supply range is from 10V to 20V, and it is compatible with 3.3V, 5V, and 15V logic inputs.

The IRSM005-301MH operates with a maximum junction temperature of 150°C and has a storage temperature range of -40°C to 150°C. The package is PQFN 7x8mm, available in trays of 1300 or tape and reel of 2000 units. Its design prioritizes low thermal resistance and minimal parasitics, making it an attractive solution for power-dense designs.

IRSM005-301MH Quick Information

Product Type: Intelligent Power Module (IPM)

Series: IRSM005

Canonical Name: Infineon IRSM005-301MH Half-Bridge Intelligent Power Module

Subcategory: Half-Bridge

IRSM005-301MH Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IRSM005-301MH Estimated Pricing

Qty	Low	High
1+	$3.68	$3.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

IRSM005-301MH Features

Half-bridge IPM with integrated gate driver.
Low on-resistance HEXFETs: 16mΩ typical.
100V drain-to-source voltage rating.
30A maximum DC current per MOSFET.
Compact 7x8mm PQFN package.

IRSM005-301MH Applications

Suitable for advanced motor drives.
Used in DC/AC converters.
Used in DC/DC converters.
Ideal for low voltage applications.
Designed for high power density.

IRSM005-301MH FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum drain-to-source voltage of the IRSM005-301MH?

The maximum drain-to-source voltage is 100V.

What is the continuous drain current rating?

The continuous drain current is 30A at a case temperature of 25°C.

What is the typical on-resistance?

Typical on-resistance is 16mΩ at 25°C with ID=10A.

What is the gate drive supply voltage range?

The gate drive supply voltage range is 10V to 20V.

What is the total gate charge?

Total gate charge is 36nC typical at ID=26A, VDS=20V, VGS=10V.

What is the package type of this device?

The device comes in a PQFN 7x8mm package.

What is the maximum operating junction temperature?

The maximum operating junction temperature is 150°C.
