| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
410 pcs
|
410 pcs | On Request | 1 | On Request | On Request | 1721 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Junction Temperature | |
| Mounting Type | |
| Propagation Delay | |
| Storage Temperature | |
| Tape & Reel |

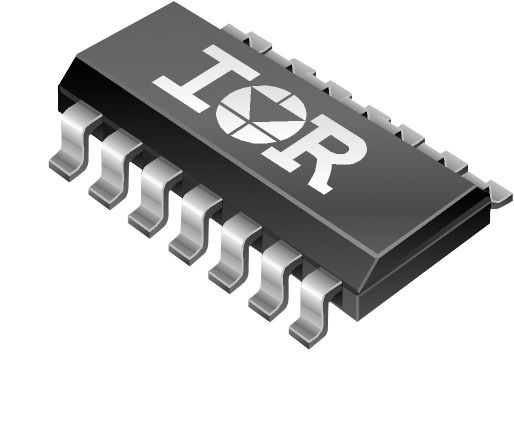

The Infineon IRS21834STRPBF is a high voltage, high speed power MOSFET and IGBT driver. It features dependent high-side and low-side referenced output channels, with the floating channel capable of operating up to 600V. This device is designed for bootstrap operation and is tolerant to negative transient voltage, with dV/dt immunity.
Key electrical specifications include a gate drive supply range of 10V to 20V, undervoltage lockout for both channels, and compatibility with 3.3V and 5V logic inputs. The output drivers provide a source current capability of 1.4A and a sink current capability of 1.8A. Propagation delay is matched for both channels, with programmable deadtime ranging from 400ns to 5000ns.
Packaged in a 14-lead SOIC surface mount package, the IRS21834STRPBF is suitable for various power management applications. It operates within a junction temperature range of -50°C to 150°C and has a package power dissipation of 1.0W at 25°C ambient temperature, with a thermal resistance of 120°C/W for the 14-SOIC package.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.36 | $2.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
620 V maximum.
1.4 A source and 1.8 A sink.
180 ns (typical) / 220 ns (typical) for both channels.
Yes, the logic input voltage range is 3.3 V to 5 V.
14-pin SOIC surface mount package.
150 °C.
