IRMCF183M The Infineon Technologies IRMCF183M is a high-performance sensorless motor control IC. It features a 3.3V operating voltage and a 32-QFN package.
Mfr Part #:

IRMCF183M

Available from 2 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies IRMCF183M is a high-performance sensorless motor control IC. It features a 3.3V operating voltage and a 32-QFN package.
✓ Total Stock: 8,214 pcs
$ Price Range: $2.25

IRMCF183M Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
4,900 pcs
On Request
4900 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,314 pcs
On Request
3314 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRMCF183M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Technology
Voltage
View Similar Products (0)

IRMCF183M Description

Short technical summary and product information.

The Infineon Technologies IRMCF183M is a high-performance, Flash-based motion control IC designed for low-cost appliance control. It integrates two computation engines: a Flexible Motion Control Engine (MCE) for sensorless control of permanent magnet or induction motors, and an 8-bit high-speed microcontroller (8051).



Key electrical specifications include a maximum clock input of 60 MHz, a 12-bit ADC resolution, and a 3.3V single supply. The device offers 64 Kbyte of internal Flash memory and 4 KB of data RAM. It supports sensorless control algorithms and features built-in hardware for current feedback reconstruction.

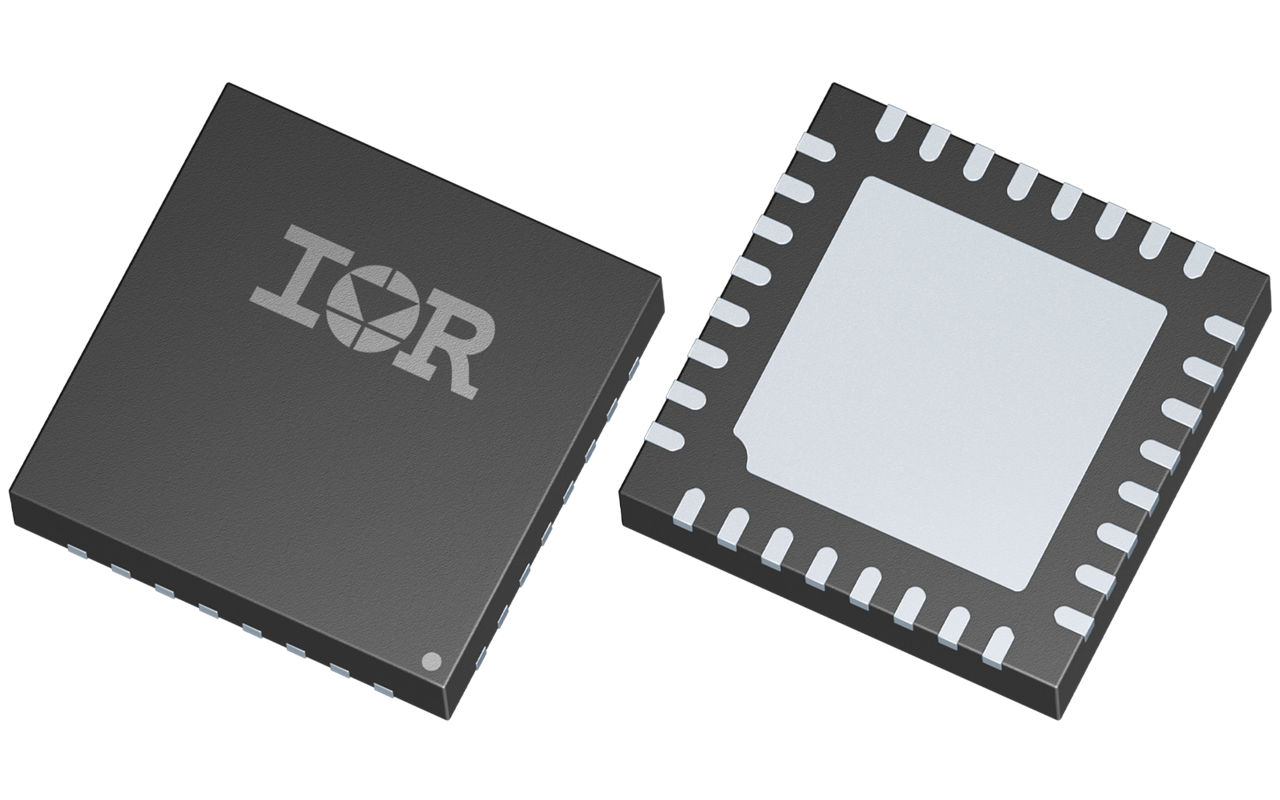

This IC is housed in a compact 32-pin, 5x5 QFN package, suitable for surface mounting. Its design is optimized for efficient sinusoidal sensorless motor control, making it ideal for various appliance applications requiring precise motor management.

IRMCF183M Quick Information

Product Type: Motor Driver IC
Canonical Name: High Performance Sensorless Motor Control IC
Subcategory: Specialized ICs

IRMCF183M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IRMCF183M Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

IRMCF183M Features

  • High performance sensorless motor control IC.
  • Integrated MCE and 8051 microcontroller.
  • 3.3V single supply operation.
  • 12-bit ADC resolution.
  • Compact 32-QFN (5x5) package.

IRMCF183M Applications

  • Sensorless control of permanent magnet motors.
  • Sensorless control of induction motors.
  • Low-cost appliance control.
  • General purpose motor management.

IRMCF183M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the IRMCF183M?

The IRMCF183M operates at 3.3V with a range of 3V to 3.6V.

What is the operating temperature range of the IRMCF183M?

The operating temperature range is -40°C to 125°C (TA).

What package does the IRMCF183M come in?

The IRMCF183M is available in a 32-WFQFN Exposed Pad package, also specified as 32-QFN (5x5 mm).

How much program flash memory does the IRMCF183M have?

The IRMCF183M has 52 KB of 8051 program flash memory and an internal 64 Kbyte flash.

What is the maximum clock input frequency for the IRMCF183M?

The maximum clock input frequency is 60 MHz.

What type of motor does the IRMCF183M control?

The IRMCF183M is designed for AC, induction, and synchronous motors.

What is the resolution of the A/D converter on the IRMCF183M?

The A/D converter has a 12-bit resolution.
