| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current Consumption | |
| Halogen Free | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Supply Voltage |

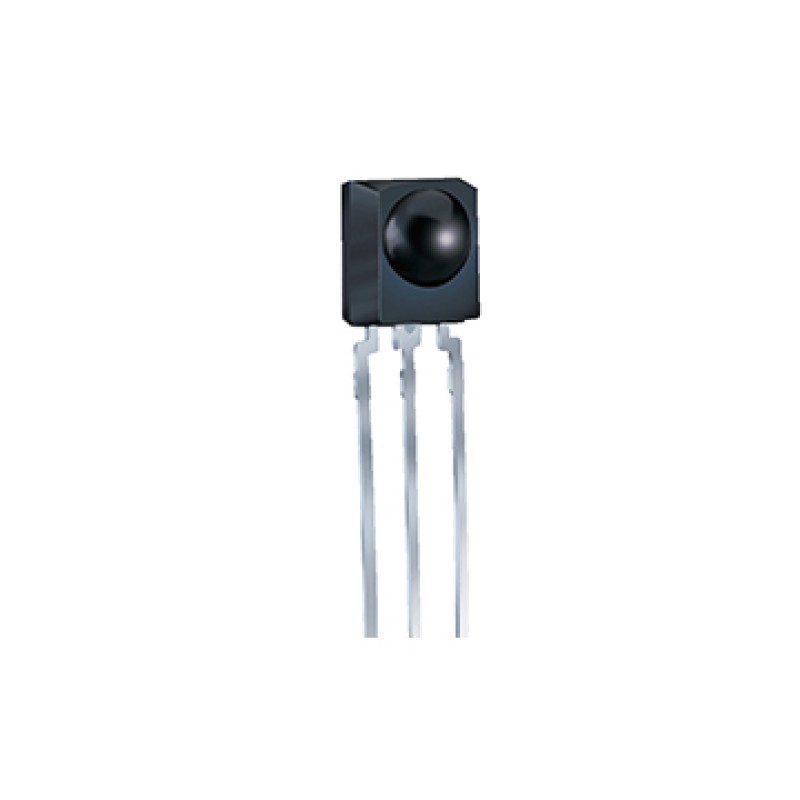

The Everlight Electronics IRM-3638M3 is a DIP package infrared receiver module utilizing the latest IC technology for compatibility with most common IR protocols. It is designed with a circular lens for improved reception characteristics and offers low operating voltage and low power consumption.
Key electrical specifications include a 38 kHz carrier frequency, a supply voltage range of 2.7V to 5.5V, and a current consumption of 0.10 mA to 0.55 mA. The module provides a peak wavelength of 940 nm, with output low level voltage between 0.2V and 0.4V, and output high level voltage ranging from Vcc-0.3V to Vcc. It features a maximum reception range of 14m to 20m and a half angle of ±45° both horizontally and vertically.
This infrared receiver module is optimized for immunity against TFT backlight interferences and ambient light, offering a long reception range and high sensitivity. It operates within a temperature range of -20°C to +80°C.
The IRM-3638M3 is suitable for various applications including AV equipment such as TVs, VCRs, DVDs, CDs, MDs, CATV set-top boxes, and other devices that utilize IR remote control. The demodulated output signal can be directly decoded by a microprocessor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IRM-3638M3 module has a carrier frequency of 38 kHz.
The operating supply voltage range for the IRM-3638M3 is 2.7V to 5.5V.
The current consumption without an input signal ranges from 0.10 mA to 0.55 mA.
The peak wavelength for the IRM-3638M3 is 940 nm.
The maximum reception range for the IRM-3638M3 is between 14m and 20m.
The IRM-3638M3 can operate within a temperature range of -20°C to +80°C.
Yes, the IRM-3638M3 is RoHS3 Compliant.
