| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,030 pcs
|
7030 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
459 pcs
|
459 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

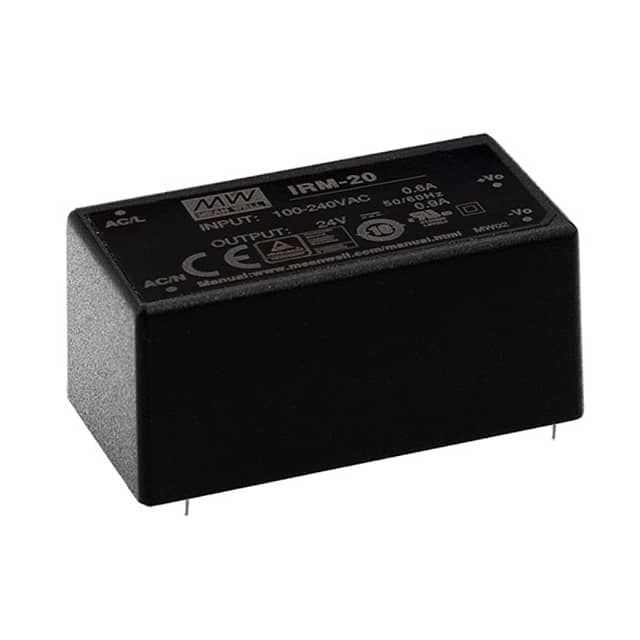

The Mean Well USA IRM-20-12 is an enclosed AC/DC power supply converter designed for various applications. It provides 22W of power with a single 12V output.
This converter operates with a wide input voltage range of 85 to 264 VAC or 120 to 370 VDC, featuring universal input capability. It achieves an efficiency of 84% and can deliver up to 1.8A of current. The operating temperature range is from -30 to 70°C, with derating applied.
Designed for ITE (Commercial) applications, the IRM-20-12 comes in a compact 4-DIP module package with through-hole mounting. Its dimensions are 52.4mm in length, 27.2mm in width, and 24.0mm in height.
Compliance is indicated by approval agencies including CB, CE, cURus, and TUV. The product is also noted as RoHS3 Compliant, though this status has low confidence.
The input voltage range is 85 to 264 VAC or 120 to 370 VDC.
The IRM-20-12 provides 22W of power.
The operating temperature range is -30 to 70°C, with derating.
It is supplied in a 4-DIP module package.
The efficiency is 84%.
The dimensions are 52.4mm (L) x 27.2mm (W) x 24.0mm (H).
