| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,512 pcs
|
13512 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
121 pcs
|
121 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

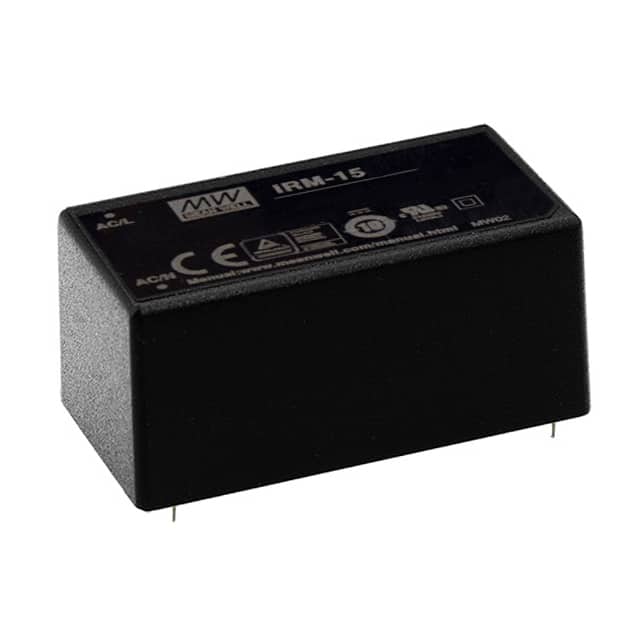

The Mean Well USA IRM-15-12 is an enclosed AC/DC converter designed for various ITE (Commercial) applications. It features a universal input voltage range of 85 to 305 VAC or 120 to 430 VDC, making it versatile for global use.
With a power output of 15W and a single 12V output, this converter offers an efficiency of 82%. Its compact dimensions are 52.4mm in length, 27.2mm in width, and 24.0mm in height. The operating temperature range is -30°C to 70°C, with derating applied.
This component is suitable for through-hole mounting and comes in a 4-DIP module package. It has received approvals from CB, CE, cURus, and TUV, indicating compliance with various international safety standards.
The operating voltage range is 85 to 305 VAC or 120 to 430 VDC.
The IRM-15-12 is available in a 4-DIP module package.
The operating temperature range is -30°C to 70°C, with derating.
The dimensions are 52.4mm in length, 27.2mm in width, and 24.0mm in height.
The power output is 15W.
It is approved by CB, CE, cURus, and TUV.
