Mfr Part #:

IRM-02-5S

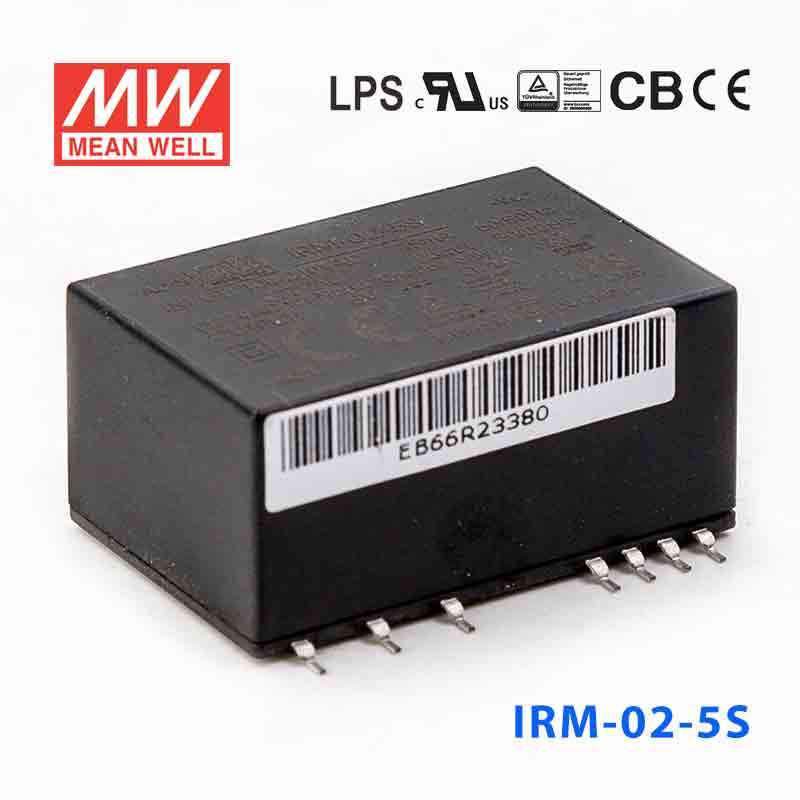

Mean Well IRM-02-5S is an AC/DC converter with 5V output at 0.4A (2W). It accepts 85-305 VAC input and comes in a 24-SMD module.

Stock on Request

IRM-02-5S Description

Short technical summary and product information.

The Mean Well IRM-02-5S is a 2W AC/DC converter module designed for board-mount applications. It provides a regulated 5V output at up to 0.4A from a wide input range of 85-305 VAC (120-430 VDC). The module offers 3KVAC reinforced I/O isolation, making it suitable for applications requiring safety isolation. With an efficiency of 70%, it operates over a -30°C to 85°C temperature range (with derating). The compact SMD package measures 33.7mm x 22.2mm x 16.0mm, ideal for space-constrained designs. It is RoHS3 compliant and has MSL 1 unlimited rating.

IRM-02-5S Quick Information

Product Type: AC DC Converter

Series: IRM-02

Canonical Name: Mean Well IRM-02-5S AC/DC Converter

Subcategory: Board Mount AC/DC Converters

IRM-02-5S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IRM-02-5S Features

Wide input voltage range 85-305 VAC.
Regulated 5V output at 0.4A.
3KVAC reinforced I/O isolation.
Compact 24-SMD surface mount package.
Operates from -30°C to 85°C.

IRM-02-5S Applications

Ideal for industrial power supply designs.
Used in IoT and embedded systems.
Suitable for space-constrained PCB assemblies.
Applicable for building automation equipment.
Used in telecommunications and networking gear.

IRM-02-5S FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range for the IRM-02-5S?

85-305 VAC (120-430 VDC)

What package type is the IRM-02-5S?

24-SMD Module, 14 Leads, Surface Mount

What is the operating temperature range?

-30°C to 85°C with derating

What output voltage and current does the IRM-02-5S provide?

5V at 0.4A (2W)

What is the isolation voltage rating?

3KVAC reinforced I/O isolation

What is the efficiency of the converter?

70%

What are the dimensions of the module?

33.7mm x 22.2mm x 16.0mm

Category	AC DC Converters
Manufacturer Name	Mean Well USA
Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current	400mA
Efficiency	70%
Features	Universal Input
Height	16.0mm (0.63")
Input Voltage	85 ~ 305 VAC
Length	33.7mm (1.33")
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature	-30°C ~ 85°C
Output Voltage	5V
Power (Watts)	2 W
Rated Current	0.4A
SVHC Present	Not Present
Type	Enclosed
Voltage	85 ~ 305 VAC, 120 ~ 430 VDC
Weight	0.05 lb
Width	22.2mm (0.87")
