Mfr Part #:

IRM-02-3.3S

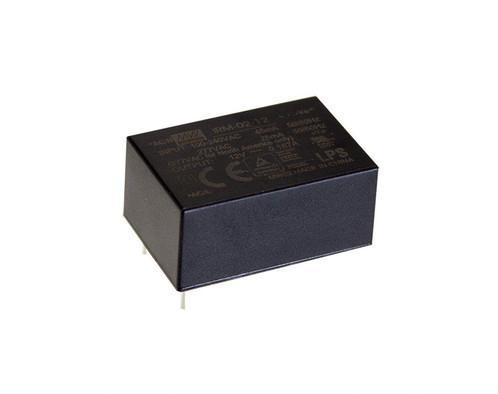

The Mean Well USA IRM-02-3.3S is an enclosed AC/DC converter with a 2W power rating. It features a universal input voltage range of 85-305 VAC.

Stock on Request

IRM-02-3.3S Description

Short technical summary and product information.

The Mean Well USA IRM-02-3.3S is an enclosed AC/DC converter designed for ITE (Commercial) applications. It operates with a wide input voltage range of 85 to 305 VAC or 120 to 430 VDC, providing flexibility for various power systems.

This converter delivers 2 watts of power with an output current of 600mA. It features a universal input and an efficiency of 66%. The device is housed in a 24-SMD Module, 14 Leads package and is designed for surface mount installation.

Operating within a temperature range of -30°C to 85°C (with derating), the IRM-02-3.3S offers reliable performance. Its dimensions are 33.7mm in length, 22.2mm in width, and 16.0mm in height.

IRM-02-3.3S Quick Information

Product Type: AC/DC Converter

Series: IRM-02

Canonical Name: Mean Well USA IRM-02-3.3S AC/DC Converter

Subcategory: Enclosed

IRM-02-3.3S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IRM-02-3.3S Features

Enclosed AC/DC converter for ITE applications.
Wide 85-305 VAC universal input range.
2W power output with 600mA current.
Surface mountable in a 24-SMD module.
Operates from -30°C to 85°C with derating.

IRM-02-3.3S Applications

Commercial ITE (Information Technology Equipment).
Low-power industrial control systems.
Embedded power supply designs.
Space-constrained board-level power applications.

IRM-02-3.3S FAQs

5 frequently asked questions generated from this part’s specifications.

What is the input voltage range for the IRM-02-3.3S?

The input voltage range is 85 ~ 305 VAC and 120 ~ 430 VDC.

What is the output current of the IRM-02-3.3S?

The output current is 600mA.

What is the power rating of the IRM-02-3.3S?

The power rating is 2 W.

What is the operating temperature range for this AC/DC converter?

The operating temperature range is -30°C to 85°C, with derating.

How is the IRM-02-3.3S mounted?

It is a surface mount device.

Home

Account

Category	AC DC Converters
Manufacturer Name	Mean Well USA
Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current	600mA
Efficiency	66%
Features	Universal Input
Height	16.0mm (0.63")
Length	33.7mm (1.33")
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature	-30°C ~ 85°C (With Derating)
Package / Case	24-SMD Module, 14 Leads
Power (Watts)	2 W
SVHC Present	Not Present
Type	Enclosed
Voltage	85 ~ 305 VAC, 120 ~ 430 VDC
Width	22.2mm (0.87")
