| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49,020 pcs
|
49020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
186 pcs
|
186 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

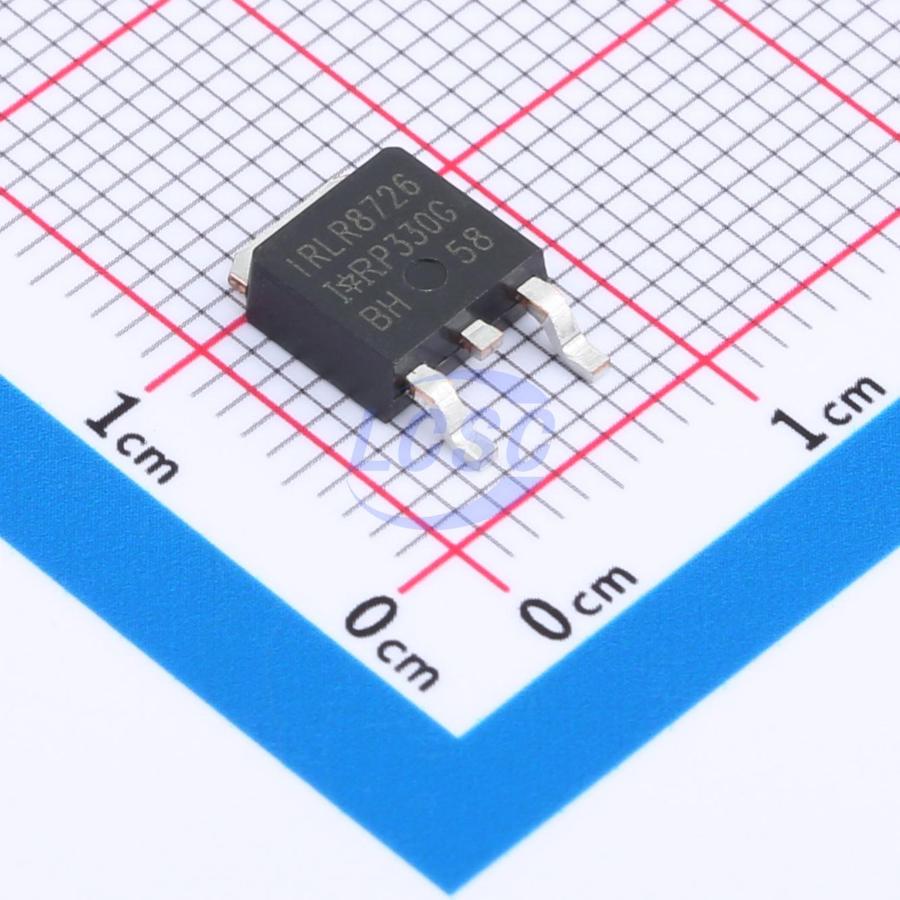

The IRLR8726TRPBF is an N-Channel power MOSFET from Infineon Technologies, part of the HEXFET family. It features a drain-source voltage rating of 30V and a continuous drain current of 86A at 25°C case temperature. The device offers a low maximum on-resistance of 5.8 mΩ at Vgs=10V and Id=25A, enabling high efficiency in power conversion applications. Gate charge is 23 nC maximum at Vgs=4.5V, and input capacitance is 2150 pF at Vds=15V, supporting fast switching. The MOSFET is designed for surface mount assembly in a D-Pak (TO-252) package, with an operating junction temperature range of -55°C to 175°C. It is RoHS compliant and lead-free per the datasheet. Typical applications include high-frequency synchronous buck converters for computer processor power, isolated DC-DC converters with synchronous rectification for telecom and industrial use, and other low-voltage power management circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.63 | $1.63 |
| 10+ | $1.03 | $1.03 |
| 100+ | $0.69 | $0.69 |
| 500+ | $0.54 | $0.54 |
| 1,000+ | $0.49 | $0.49 |
| 2,000+ | $0.45 | $0.45 |
| 4,000+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30V.
Surface mount D-Pak (TO-252) package.
-55°C to 175°C (junction).
Yes, according to the datasheet it is RoHS compliant and lead-free.
23 nC maximum at Vgs=4.5V.
5.8 mΩ at 25A, 10V.
75W at case temperature 25°C.
