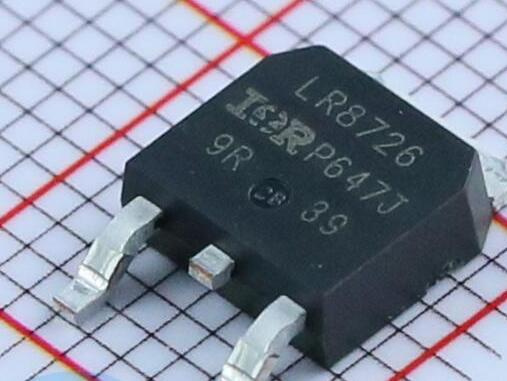

IRLR8726TRLPBF The Infineon IRLR8726TRLPBF is an N-Channel MOSFET with a 30V drain-source voltage and 86A continuous drain current. It offers a low Rds On of 5.8mOhm at 25A, 10V.
Mfr Part #:

IRLR8726TRLPBF

Available from 2 distributors
Mfr Name: Infineon
Infineon
The Infineon IRLR8726TRLPBF is an N-Channel MOSFET with a 30V drain-source voltage and 86A continuous drain current. It offers a low Rds On of 5.8mOhm at 25A, 10V.
✓ Total Stock: 11,000 pcs
$ Price Range: $1.67

IRLR8726TRLPBF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request 21+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRLR8726TRLPBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
FET Type
Gate Charge
Input Capacitance
Mounting Type
Operating Temperature
Power Dissipation
Storage Temperature
Supplier Package
Tape & Reel
Technology
View Similar Products (0)

IRLR8726TRLPBF Description

Short technical summary and product information.

The Infineon IRLR8726TRLPBF is an N-Channel MOSFET designed for high-efficiency applications. It features a maximum drain-source voltage of 30V and a continuous drain current of 86A at 25°C.



This MOSFET boasts a low on-resistance (Rds On) of 5.8mOhm at 25A and 10V, contributing to high efficiency in power conversion circuits. The gate threshold voltage is a maximum of 2.35V at 50µA, and the maximum gate-to-source voltage is ±20V.



With a maximum power dissipation of 75W and an operating temperature range of -55°C to 175°C, the IRLR8726TRLPBF is suitable for demanding environments. It is packaged in a surface-mount D-Pak (TO-252-3) case.



Ideal for high-frequency synchronous buck converters in computer processors and high-frequency isolated DC-DC converters, this component offers reliable performance for power management solutions.

IRLR8726TRLPBF Quick Information

Product Type: MOSFET
Canonical Name: IRLR8726TRLPBF N-Channel MOSFET
Subcategory: N-Channel

IRLR8726TRLPBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IRLR8726TRLPBF Estimated Pricing

Qty Low High
1+ $1.67 $1.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

IRLR8726TRLPBF Features

  • N-Channel MOSFET technology.
  • 30V drain-to-source voltage.
  • 86A continuous drain current.
  • Low 5.8mOhm Rds On.
  • Surface mount D-Pak package.

IRLR8726TRLPBF Applications

  • Used in high-current power switching circuits
  • Suitable for motor control applications
  • Ideal for power management in electronic devices
  • Designed for high-temperature environments

IRLR8726TRLPBF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage for the IRLR8726TRLPBF?

The maximum drain-to-source voltage is 30V.

What is the continuous drain current at 25°C for the IRLR8726TRLPBF?

The continuous drain current at 25°C is 86A.

What is the maximum Rds On for the IRLR8726TRLPBF at 25A, 10V?

The maximum Rds On is 5.8mOhm at 25A, 10V.

What is the operating temperature range for the IRLR8726TRLPBF?

The operating temperature range is -55°C to 175°C.

What package type is the IRLR8726TRLPBF MOSFET supplied in?

The IRLR8726TRLPBF is supplied in a TO-252-3, D-Pak (2 Leads + Tab), SC-63 package for surface mounting.
