| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style |

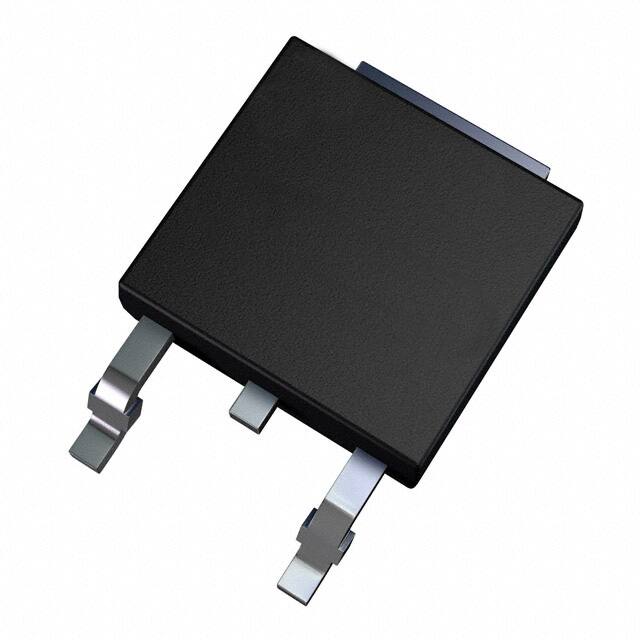

The Infineon IRLR2705PBF is a high-performance N-Channel MOSFET belonging to the HEXFET family. It is designed for efficient power switching and general-purpose applications.
Key electrical specifications include a maximum drain-source voltage of 55V and a continuous drain current rating of 28A at 25°C case temperature. The MOSFET exhibits a low on-resistance of 40mΩ at 17A and 10V gate-source voltage, ensuring minimal power loss during operation. It also supports logic-level gate drive with a 4V gate-source voltage.
This device is rated for a wide operating temperature range from -55°C to 175°C. It is packaged in a surface-mount TO-252-3 (DPak) package, suitable for automated assembly processes. The MOSFET is also avalanche rated, providing robustness in demanding applications.
With its robust design and reliable performance, the IRLR2705PBF is suitable for various power management tasks in industrial and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
55V.
28A at Tc=25°C.
-55°C to 175°C junction temperature.
TO-252-3 (DPak) surface mount package with gull wing leads.
Yes, it is logic level compatible.
Yes, it is avalanche rated.
40mOhm typical at 17A, 10V Vgs.
