| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Tape & Reel |

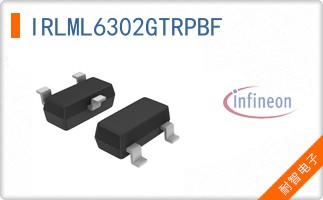

The Infineon IRLML6302GTRPBF is a P-Channel MOSFET suitable for various electronic applications. It operates with a maximum drain-source voltage (Vds) of 20V at 25°C and can handle a continuous drain current (Id) of 780mA at 25°C. The device exhibits a typical gate threshold voltage (Vgs(th)) of 1.5V at 250µA and a typical gate charge (Qg) of 3.6nC at 4.5V.
With a maximum continuous drain current of 780mA and a maximum drain-source voltage of 20V, this MOSFET is designed for efficient switching and amplification. The typical drain-source on-resistance (Rds On) is 600mΩ when measured at 610mA and 4.5V Vgs. The gate-source voltage (Vgs) has a maximum rating of ±12V.
Packaged in a surface-mount SOT-23-3 (TO-236-3, SC-59) case, the IRLML6302GTRPBF is supplied on tape and reel. It has a maximum power dissipation of 540mW at 25°C and an operating temperature range of -55°C to 150°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 20V.
The continuous drain current is 780mA at 25°C.
The typical gate threshold voltage is 1.5V.
The package type is SOT-23-3.
The operating temperature range is -55°C to 150°C.
